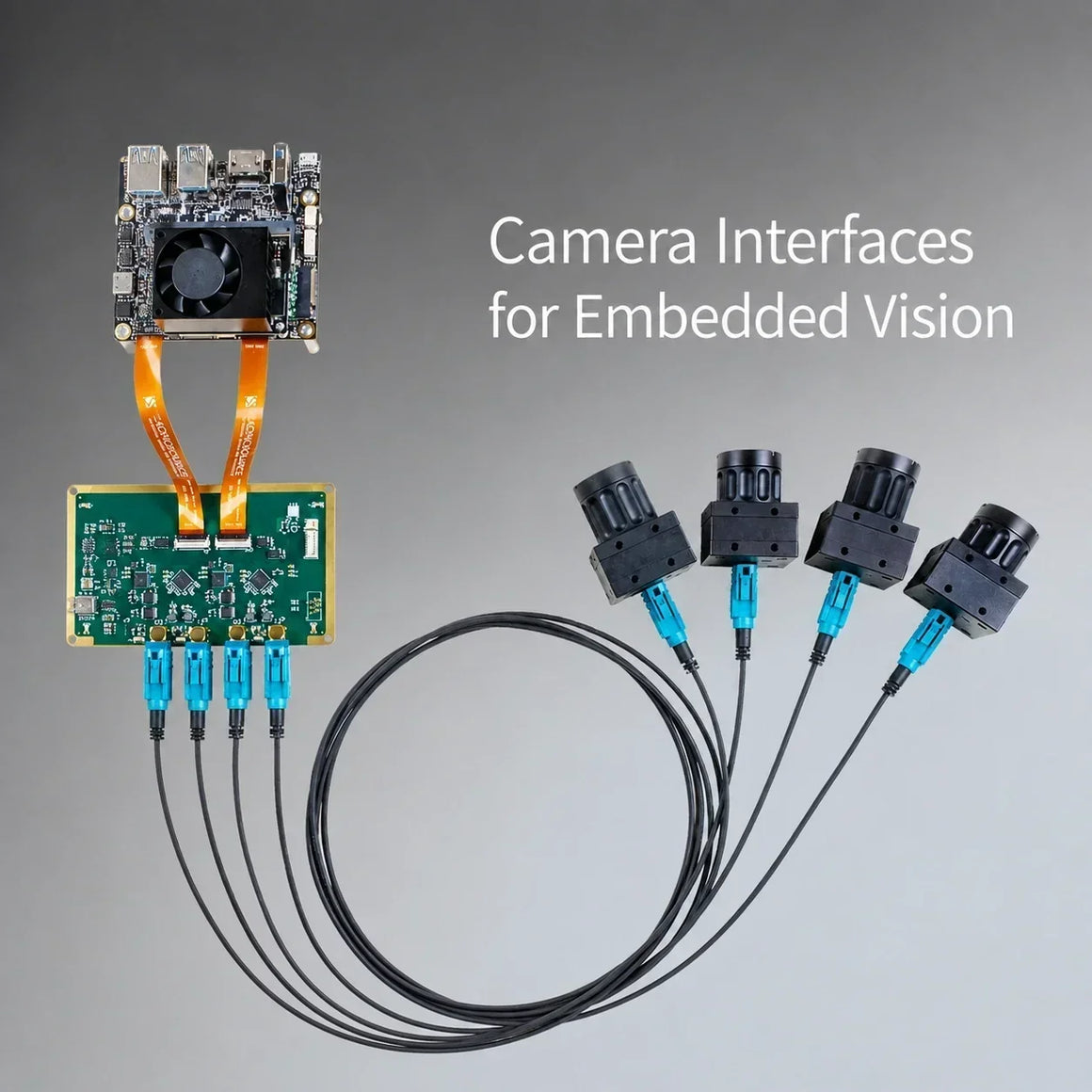

MIPI CSI-2 vs GMSL2 vs FPD-Link III: Camera Interfaces for Embedded Vision Systems
MIPI CSI-2 vs GMSL2 vs FPD-Link III is primarily a choice between direct, short-distance camera integration and longer-distance serializer/deserializer architectures.
MIPI CSI-2 is generally suitable when the camera can be positioned close to the processor. GMSL2 and FPD-Link III support remote camera placement over coaxial cable. The right interface also depends on camera format, environmental protection, processor compatibility, camera count and software support.
Which Embedded Camera Interface Should You Choose?
MIPI CSI-2 vs GMSL2 vs FPD-Link III
MIPI CSI-2 is designed for compact, direct camera-to-processor connections, while GMSL2 and FPD-Link III are designed for remote-camera systems that require longer cabling.
| Selection Factor | MIPI CSI-2 | GMSL2 | FPD-Link III |
|---|---|---|---|
| Architecture | Direct camera-to-processor connection | Serializer/deserializer connection | Serializer/deserializer connection |
| Typical Camera Position | Close to the processor | Remote from the processor | Remote from the processor |
| Current TIS Family | 36S single-board modules | Acuva IP67 cameras | 36C board-level and IP67 cameras |
| Documented TIS Cabling | Short 22-pin FPC connection | Coaxial cable up to 15 m | Coaxial cable up to 15 m |
| Documented Interface Rate | Up to 10 Gbps across four lanes | Up to 6 Gbps | Up to 4.16 Gbps |
| Additional Hardware | Compatible CSI-2 input or carrier board | Compatible GMSL2 deserializer | Compatible FPD-Link III deserializer |
| Main Reason to Choose | Compact direct integration | Rugged remote-camera integration | Remote board-level or housed integration |
The Imaging Source portfolio maps these interfaces to distinct camera formats and supported reference-design routes.
Compare the Embedded Camera Portfolio
Review MIPI CSI-2, GMSL2 and FPD-Link III cameras, sensor options, reference designs and supporting hardware.
How Do MIPI CSI-2, GMSL2, and FPD-Link III Work?
MIPI CSI-2 transfers image data directly to a processor, while GMSL2 and FPD-Link III serialize the camera signal for transmission over a longer cable.
Direct MIPI CSI-2 Architecture
A MIPI CSI-2 camera connects to a compatible CSI-2 input on the carrier board or processor.
Camera module → FPC cable → carrier board or processor → application
The direct architecture reduces the need for additional interface-conversion hardware. However, the camera, connector, pin assignment, lane configuration, driver and processor input must all be compatible.
The TIS 36S Series uses a 22-pin connection and supports up to four CSI-2 data lanes in documented configurations.
GMSL2 and FPD-Link III SerDes Architecture
GMSL2 and FPD-Link III use a serializer near the camera and a deserializer near the processor.
Camera and serializer → coaxial cable → deserializer → CSI-2 output → processor
The serializer prepares the image stream for transmission. The deserializer reconstructs it for the host platform. Depending on the configuration, the cable can also carry power and control data.
The camera, cable, serializer, deserializer, carrier board and software should therefore be evaluated as one system.
When Should You Choose MIPI CSI-2?
Choose MIPI CSI-2 when the camera can be positioned close to the processor and compact, direct integration is the main requirement.
MIPI CSI-2 Is Suitable When
- The camera and processor are located within the same device.
- A small board-level camera is required.
- Low-latency image transfer is important.
- The processor provides a compatible CSI-2 input.
- The required camera driver is available.
- Long external cabling is not required.
What Should You Confirm?
A matching connector does not automatically confirm compatibility. Check:
- Connector and pin assignment
- Number and speed of CSI-2 lanes
- Pixel format and bit depth
- Sensor-driver availability
- Device-tree configuration
- Carrier-board compatibility
- Frame rate at the required resolution
- Cable length and routing
Explore The Imaging Source 36S MIPI CSI-2 camera range for compact board-level embedded vision integration.
When Should You ChooseGMSL2?
Choose GMSL2 for applications that require a rugged, housed camera located remotely from the processing platform.
The Acuva Series combines GMSL2 with IP67-rated housings, FAKRA connectors and Power over Coax. Current TIS documentation specifies cable distances up to 15 m and data transfer up to 6 Gbps for supported configurations.
GMSL2 Is Suitable When
- The camera is mounted remotely.
- A rugged IP67 camera is required.
- A single coaxial connection should carry image data and power.
- The application involves robotics, mobile machinery or exposed installations.
- A compatible GMSL2 deserializer is available.
- Several remote cameras must connect to one processing platform.
What Should You Confirm?
Evaluate the complete signal chain:
- Camera and serializer
- Coaxial cable and connectors
- Power over Coax implementation
- Deserializer board
- Carrier board or processor
- Driver and operating system
- Triggering and synchronization
Explore The Imaging Source Acuva GMSL2 cameras for rugged, remote-camera embedded vision systems.
When Should You Choose FPD-Link III?
Choose FPD-Link III when a remote board-level or IP67 camera is required and the processing platform supports a compatible FPD-Link III deserializer.
The TIS 36C Series includes compact board modules and protected housed cameras. Documented configurations support cable distances up to 15 m.
FPD-Link III Is Suitable When
- A remote board-level camera is required.
- A remote IP67 camera is required.
- The platform already has an FPD-Link III integration route.
- Trigger and I/O functions are needed at the camera.
- A suitable sensor is available in the 36C portfolio.
What Should You Confirm?
Check:
- Serializer and deserializer compatibility
- Cable and FAKRA configuration
- Power-delivery requirements
- Camera count
- Trigger and synchronization support
- Processor and carrier-board compatibility
- Driver, BSP and operating-system version
GMSL2 and FPD-Link III are not interchangeable. They provide similar functionality for remote-camera connectivity, but rely on different hardware and software.
View The Imaging Source 36C FPD-Link III camera range for remote board-level and protected housed embedded vision integration.
Why is Maximum Bandwidth Not Enough?
Maximum interface speed does not determine the final application frame rate on its own.
System performance also depends on:
- Sensor output
- Resolution and bit depth
- Number and speed of CSI-2 lanes
- Deserializer output capacity
- Number of cameras
- Processor capture channels
- ISP and memory bandwidth
- Software configuration
Calculate the requirement for all cameras operating simultaneously rather than comparing only headline interface rates.
A useful starting point is:
resolution × frame rate × bit depth × camera count
Protocol overhead and platform constraints must then be included during system validation.
How Do Multi-Camera Systems and Synchronization Affect the Choice?
Multi-camera systems require enough deserializer inputs, CSI-2 bandwidth, processor capacity and software support for every image stream.
Confirm
Selected NVIDIA® Jetson Orin™ reference designs support up to four compatible GMSL2 or FPD-Link III cameras through the appropriate deserializer.
The documented NXP i.MX 8M Plus reference design supports up to two cameras, depending on the interface configuration.
Planning a Multi-Camera System?
Share your camera count, resolution, frame rate, cable distance and processor platform for initial selection guidance.
Which Platforms Supports These Camera Interfaces?
Platform support depends on the complete camera, carrier-board, deserializer, operating-system and driver combination.
| Platform | MIPI CSI-2 | GMSL2 | FPD-Link III |
|---|---|---|---|
| NVIDIA Jetson Orin | Supported through documented carrier-board configurations | Supported through compatible deserializer hardware | Supported through compatible deserializer hardware |
| NXP i.MX 8M Plus | Supported through the documented reference design | Additional deserializer hardware required | Additional deserializer hardware required |
| Raspberry Pi 5 | Selected 36S configurations | No route confirmed in the reviewed material | No route confirmed in the reviewed material |
Confirm compatibility before production. Confirm the exact camera model, BSP, driver and operating-system release before production.
What Are the Most Common Interface-Selection Mistakes?
The most common mistakes result from selecting the interface without evaluating the complete imaging system.
Selecting by cable length alone
Distance does not define the required camera format, sensor, processor or software path.
Assuming every CSI-2 connector is compatible
A matching connector does not confirm pinout, lane count, driver or ISP compatibility.
Comparing only maximum data rates
A higher interface rate does not guarantee a higher usable frame rate.
Ignoring the deserializer
The deserializer affects camera count, bandwidth, synchronization, virtual channels and driver requirements.
Testing only one camera
A single-camera prototype does not validate a multi-camera system’s bandwidth, power or thermal behavior.
Treating a reference design as final validation
A reference design can reduce integration effort, but the final system still requires application-specific testing.
Download the Embedded Vision Camera Catalog
The Embedded Vision Camera Catalog brings the current TIS interface families and reference-design options together in one focused document.
It covers:
Use the catalog to create an initial shortlist. Confirm current availability, platform compatibility and software support before final selection.
