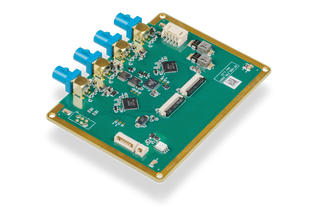

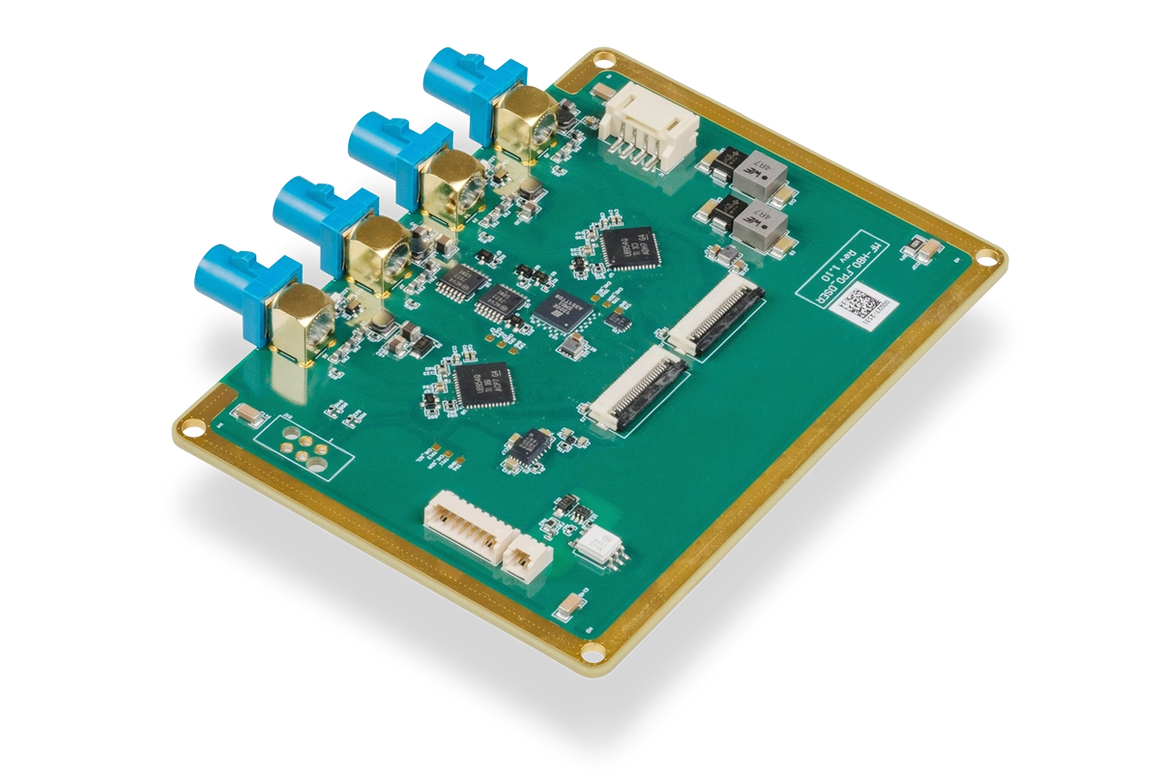

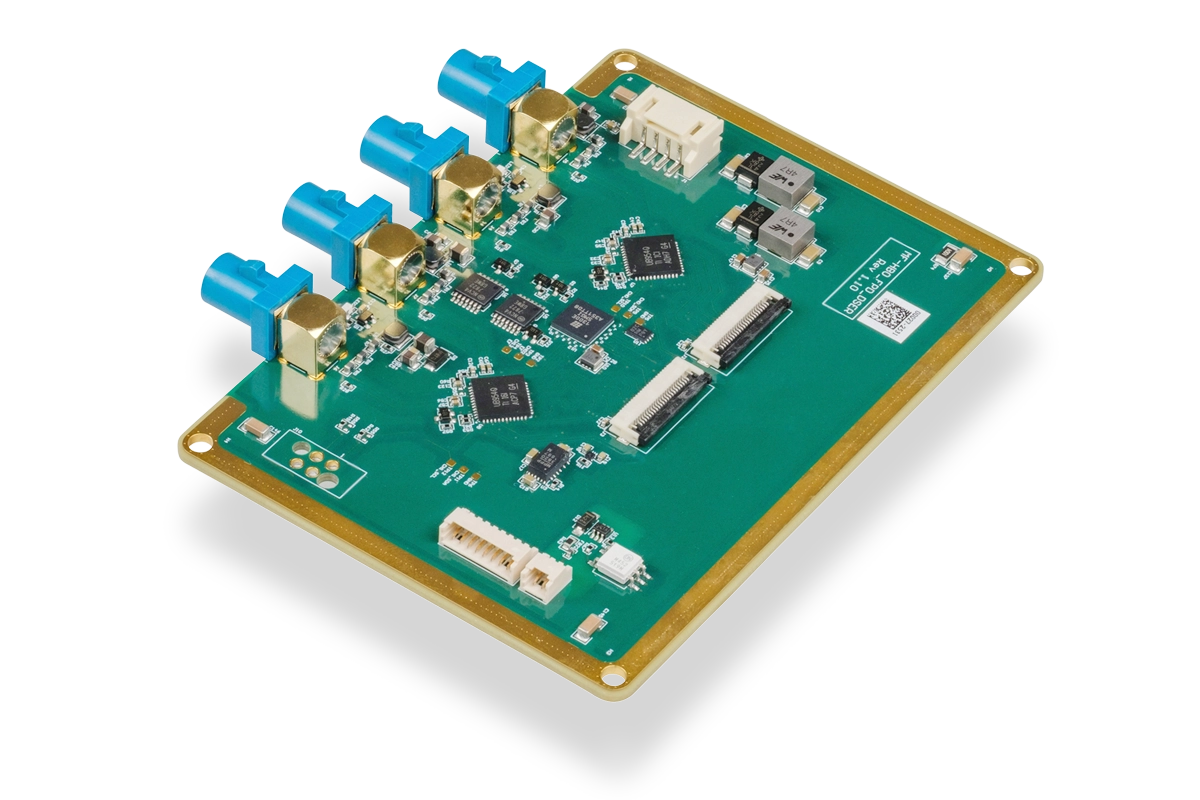

4-Channel FPD-Link III (MDSER-FPD3-4CH)

4-Channel FPD-Link III Deserializer Board for Camera Integration

The 4-channel FPD-Link III Deserializer Board supports connection of up to four compatible 36C FPD-Link III IP67 cameras.

This 4-channel design helps engineers build embedded vision systems with multiple remote camera inputs. It can support applications that require several camera viewpoints, broader scene coverage or camera placement around a machine, vehicle or inspection area.

For reliable integration, the selected camera model, cable length, connector setup, carrier board, reference design and software environment should be checked together before implementation.

FPD-Link III Deserializer Board for Reliable Image Transmission

The FPD-Link III Deserializer Board MDSER-FPD3-4CH supports reliable image data transmission between compatible cameras and the embedded processing platform.

With data transfer speeds of up to 4.16 Gbps, FPD-Link III is suitable for embedded vision systems where the camera must be installed away from the processing board. This supports flexible camera placement while maintaining a reliable high-speed connection over compatible coaxial cabling.

FPD-Link III camera systems are commonly used in embedded vision applications where cable reach, system reliability and compact camera integration are important.

Deserializer Board FPD-Link III Compatibility with 36C IP67 Cameras

The Deserializer Board FPD-Link III MDSER-FPD3-4CH is designed for use with compatible 36C FPD-Link III IP67 cameras from The Imaging Source.

The 36C FPD-Link III camera family supports embedded vision projects where remote camera placement and robust camera integration are required. hen combined with the correct deserializer board, coaxial cable and processing platform, the camera setup can support reliable image acquisition as part of an embedded vision system.

This makes the MDSER-FPD3-4CH a practical option for engineers who need a defined FPD-Link III camera-to-board setup.

FPD-Link III Deserializer Board Cable and FAKRA Connector Compatibility

The FPD-Link III Deserializer Board is used with compatible IP67-rated coaxial PoC cables featuring FAKRA connectors.

Power-over-Coax can help simplify wiring by supporting power and data transmission through the compatible coaxial connection. The Imaging Source coaxial cables are available in lengths from 1 m to 15 m, supporting flexible camera placement when the sensor needs to be installed away from the embedded processing platform.

The correct cable configuration should always be selected based on the camera model, cable length, mechanical routing and system requirements.

Deserializer Board FPD-Link III for NVIDIA Jetson Orin Reference Designs

The Deserializer Board FPD-Link III MDSER-FPD3-4CH can be used with compatible NVIDIA Jetson Orin reference designs from The Imaging Source.

This helps connect compatible 36C FPD-Link III cameras to a Jetson Orin-based embedded vision platform for image acquisition, processing and AI vision tasks. The deserializer board acts as the bridge between the remote cameras and the processing hardware.

This is useful for embedded vision systems in robotics, mobile machines, outdoor inspection, industrial automation and edge computing applications.

Software Support for FPD-Link III Deserializer Board Integration

FPD-Link III Deserializer Board integration depends on reliable software support, drivers and platform configuration.

The Imaging Source supports embedded vision development with device drivers, software development kits, end user software, programming samples, extensions and tools for Linux ARM 64-bit environments. This helps engineering teams reduce development effort when integrating compatible FPD-Link III cameras into embedded systems.

The exact software setup should be confirmed based on the selected camera, board, platform and project requirements.

Technical Documentation for the FPD-Link III Deserializer Board

The FPD-Link III Deserializer Board is supported by technical documentation for system and mechanical integration.

Before selecting the board, engineers can request the Technical Reference Manual and STEP file for the 4-Channel FPD-Link III Deserializer Board. The Technical Reference Manual helps review electrical and system-level requirements, while the STEP file supports mechanical design, mounting checks and enclosure planning.

Need the Technical Reference Manual or STEP file for the MDSER-FPD3-4CH? Request the technical documentation or visit the download page to review the available product resources.

Applications for the MDSER-FPD3-4CH Deserializer Board

The MDSER-FPD3-4CH Deserializer Board is suitable for embedded vision systems that need FPD-Link III camera placement and reliable multi-camera image transmission.

Typical applications include:

• Robotics and automation
• Vehicle-mounted vision systems
• Agricultural monitoring
• Outdoor inspection systems
• Embedded AI vision
• Mobile and edge computing platforms
• Multi-camera machine vision
• Industrial inspection
• Harsh-environment camera systems
• OEM embedded vision products

MDSER-FPD3-4CH Deserializer Board for Embedded Vision Projects

Choose the MDSER-FPD3-4CH when your project needs a Deserializer Board FPD-Link III setup for connecting up to four compatible 36C FPD-Link III IP67 cameras to an embedded processing platform. The combination of FPD-Link III transmission, FAKRA connector support, IP67-rated coaxial PoC cable compatibility, NVIDIA Jetson Orin reference design support and Linux ARM 64-bit software resources makes this board a practical option for embedded vision systems that require reliable remote camera integration.

Need help selecting the right FPD-Link III camera, cable or processing platform for the MDSER-FPD3-4CH? Contact us for advice about your embedded vision project.
