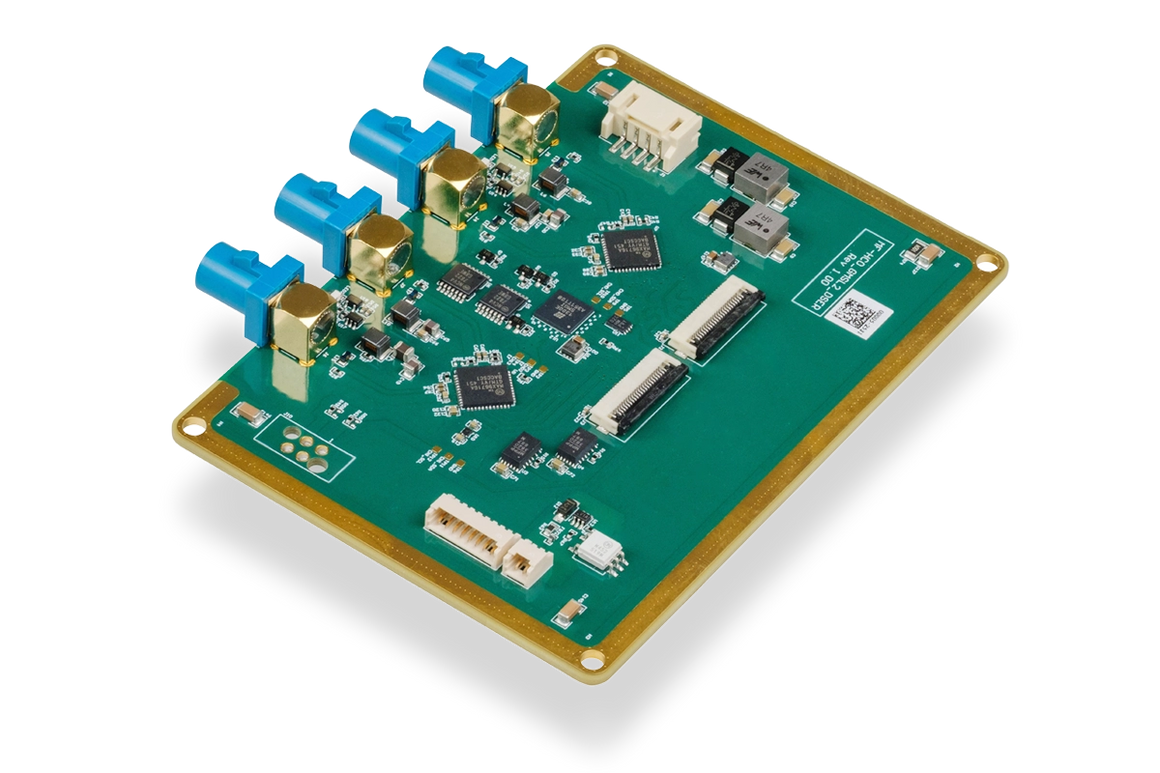

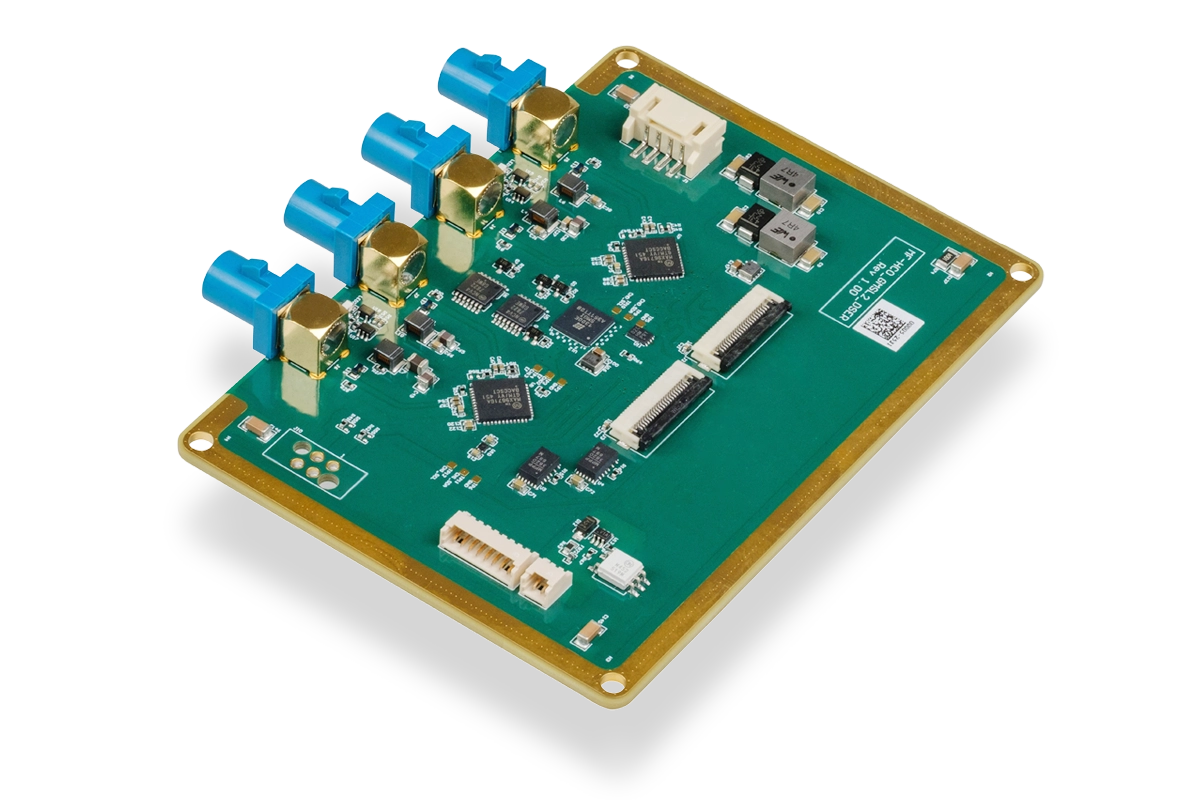

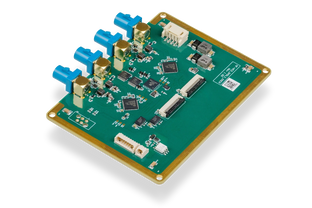

4-Channel GMSL2 (MDSER-GMSL2-4CH)

4-Channel GMSL2 Deserializer Board for Camera Integration

The 4-channel GMSL2 Deserializer Board supports connection of up to four compatible Acuva GMSL2 IP67 cameras.

This 4-channel design is useful for embedded vision systems that need multiple viewing angles, wider area coverage or synchronized camera placement around a machine, vehicle, robot or inspection setup. By connecting several remote cameras to one deserializer board, engineers can create a more compact and structured embedded vision architecture.

For multi-camera applications, the complete system should be checked together, including camera model, cable length, FAKRA connector configuration, processing platform and software environment.

GMSL2 Deserializer Board for High-Speed Image Transmission

The GMSL2 Deserializer Board MDSER-GMSL2-4CH supports high-speed image data transmission between compatible cameras and the embedded processing platform.

With data transfer speeds of up to 6 Gbps, GMSL2 is suitable for embedded vision systems that need stable image transmission over coaxial cabling. This is important for applications where the camera must be installed away from the processing hardware while still maintaining a reliable data connection.

A GMSL2 camera setup can be especially useful in robotics, agriculture, vehicle-mounted vision, outdoor systems and multi-camera embedded platforms where cable flexibility and robust signal transmission are important.

Deserializer Board GMSL2 Compatibility with Acuva IP67 Cameras

The Deserializer Board GMSL2 MDSER-GMSL2-4CH is designed for use with compatible Acuva GMSL2 IP67 cameras from The Imaging Source.

Acuva GMSL2 cameras are built for embedded vision systems where the camera may be exposed to demanding installation conditions. When combined with the correct deserializer board, cable and processing platform, they support compact and reliable system integration for remote camera setups.

This makes the MDSER-GMSL2-4CH a practical choice for embedded vision projects that require rugged camera placement, high-speed transmission and a clearly defined camera-to-board ecosystem.

GMSL2 Deserializer Board Cable and FAKRA Connector Compatibility

The GMSL2 Deserializer Board is used with compatible IP67-rated coaxial PoC cables featuring FAKRA connectors.

Power-over-Coax helps reduce separate wiring by supporting power and data transmission through the compatible coaxial cable setup. The Imaging Source coaxial cables are available in lengths from 1 m to 15 m, giving engineers more flexibility when positioning cameras away from the processing platform.

The correct cable should always be selected together with the camera, board and mechanical setup to ensure reliable system integration.

Deserializer Board GMSL2 for NVIDIA Jetson Orin Reference Designs

The Deserializer Board GMSL2 MDSER-GMSL2-4CH can be used with compatible NVIDIA Jetson Orin reference designs from The Imaging Source.

This helps engineering teams connect remote GMSL2 cameras to a powerful embedded vision platform for image acquisition, processing and AI-based vision tasks. For projects using NVIDIA Jetson Orin, the deserializer board helps bridge the connection between the Acuva GMSL2 cameras and the embedded processing hardware.

This is especially useful for robotics, autonomous systems, agricultural machines, mobile inspection platforms and edge AI vision systems.

Software Support for GMSL2 Deserializer Board Integration

GMSL2 Deserializer Board integration depends on reliable drivers, SDKs and platform support.

The Imaging Source supports embedded vision development with device drivers, software development kits, end user software, programming samples, extensions and tools for Linux ARM 64-bit environments. Software support can help reduce development effort when moving from first camera evaluation to a working embedded vision setup.

The exact software environment should be checked based on the selected camera model, board configuration and processing platform.

Technical Documentation for the GMSL2 Deserializer Board

The GMSL2 Deserializer Board is supported by technical documentation for integration planning.

Before selecting the board, engineers can request or access the Technical Reference Manual and STEP file for the 4-Channel GMSL2 Deserializer Board. The Technical Reference Manual helps evaluate electrical and system requirements, while the STEP file supports mechanical integration, mounting checks and enclosure planning.

Need the Technical Reference Manual or STEP file for the MDSER-GMSL2-4CH? Request the technical documentation or visit the download page to review the available product resources.

Applications for the MDSER-GMSL2-4CH Deserializer Board

The MDSER-GMSL2-4CH Deserializer Board is suitable for embedded vision systems that need remote GMSL2 camera placement and reliable multi-camera image transmission.

Typical applications include:

• Robotics and autonomous systems
• Agricultural machinery
• Vehicle-mounted vision systems
• Outdoor inspection systems
• Embedded AI vision
• Multi-camera machine vision
• Mobile and edge computing platforms
• Industrial automation
• Harsh-environment vision systems
• OEM embedded vision products

MDSER-GMSL2-4CH Deserializer Board for Embedded Vision Projects

Choose the MDSER-GMSL2-4CH when your project needs a Deserializer Board GMSL2 setup for connecting up to four compatible Acuva GMSL2 IP67 cameras to an embedded processing platform. The combination of GMSL2 transmission, FAKRA connector support, IP67-rated coaxial PoC cable compatibility, NVIDIA Jetson Orin reference design support and Linux ARM 64-bit software resources makes this board a practical option for demanding embedded vision systems.

Need help selecting the right GMSL2 camera, cable or processing platform for the MDSER-GMSL2-4CH? Contact us for advice about your embedded vision project.
