DMM 36SX900-ML MIPI CSI-2
DMM 36SX900-ML
- IMX900
- MIPI CSI-2 Camera

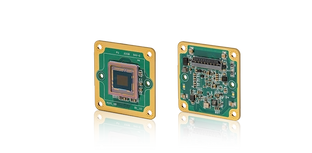

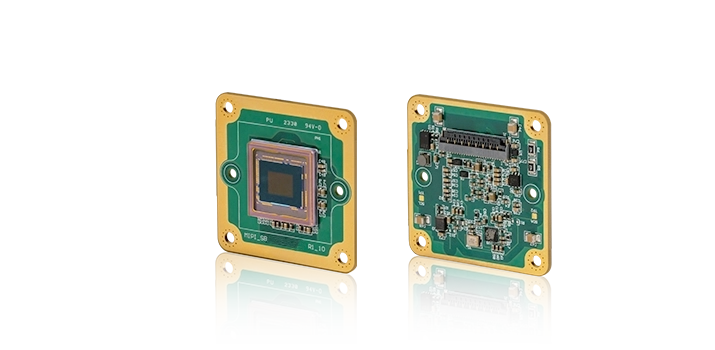

The IMX900 MIPI CSI-2 camera DMM 36SX900-ML is a monochrome embedded vision camera with a CMOS Pregius S global shutter sensor. With 2048×1536 resolution, 3.1 MP output, 117 fps at full resolution and global shutter imaging, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMM 36SX900-ML uses a 1/3.1 inch IMX900 CMOS Pregius S sensor and connects through MIPI CSI-2. Its design makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
IMX900 sensor for embedded vision
The DMM 36SX900-ML is built around the IMX900 image sensor. This CMOS Pregius S sensor combines a global shutter with a 2048×1536 resolution and up to 117 fps, making it a strong choice for applications where speed, contrast and repeatable image capture are important.
Pregius S technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DMM 36SX900-ML |
Monochrome MIPI CSI-2 camera with IMX900 sensor
This monochrome MIPI CSI-2 camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Color cameras use a Bayer pattern, which can affect apparent sharpness compared with monochrome cameras.
For embedded vision, this makes the DMM 36SX900-ML well-suited for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter MIPI CSI-2 camera for moving objects
The DMM 36SX900-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. Exposing every pixel simultaneously helps eliminate spatial distortion during high-speed motion.
Applications for the IMX900 MIPI CSI-2 camera
The DMM 36SX900-ML is suitable for embedded vision applications where a monochrome camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36SX900-ML for embedded vision projects
Choose the DMM 36SX900-ML when your project needs an IMX900 MIPI CSI-2 camera with global shutter, monochrome output and reliable image capture at up to 117 fps. Its MIPI CSI-2 interface and CMOS Pregius S sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMM 36SX900-ML? Contact us for advice about your embedded vision project.
