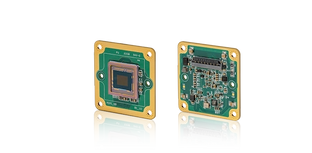

DMM 36SX568-ML MIPI CSI-2
DMM 36SX568-ML
- IMX568
- MIPI CSI-2 Camera
The IMX568 MIPI CSI-2 camera DMM 36SX568-ML is a monochrome embedded vision camera with a CMOS Pregius S global shutter sensor. With 2448×2048 resolution, 79 fps at full resolution and a 5 MP pixel count, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMM 36SX568-ML uses a 1/1.8 inch IMX568 CMOS Pregius S sensor and connects through a MIPI CSI-2 interface. Its 36S Series design supports integration into embedded systems, robotics, inspection devices and OEM vision products where a MIPI CSI-2 camera module is required.
IMX568 sensor for embedded vision
The DMM 36SX568-ML is built around the IMX568 image sensor. This CMOS Pregius S sensor combines global shutter technology with a 2448×2048 resolution and 5 MP output, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than very high megapixel counts.
Global shutter technology is developed for CMOS sensors used in high-speed, high-precision factory automation and machine vision applications. With a global shutter, the camera captures the entire scene at once before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DMM 36SX568-ML |
Monochrome MIPI CSI-2 camera with IMX568 sensor
This monochrome MIPI CSI-2 camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Without a color filter array, monochrome cameras can preserve fine detail and simplify image processing pipelines in applications where grayscale information is sufficient.
For embedded vision, this makes the DMM 36SX568-ML especially relevant for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale data meets the requirements.
Global shutter MIPI CSI-2 camera for moving objects
The DMM 36SX568-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. At up to 79 fps at full 2448×2048 resolution, the camera supports high-throughput acquisition and consistent timing for motion-centric tasks.
Applications for the IMX568 MIPI CSI-2 camera
The DMM 36SX568-ML is suitable for embedded vision applications where a monochrome MIPI CSI-2 camera with global shutter is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36SX568-ML for embedded vision projects
Choose the DMM 36SX568-ML when your project needs an IMX568 MIPI CSI-2 camera with global shutter, monochrome output and 5 MP resolution at up to 79 fps. Its 1/1.8 inch sensor format, MIPI CSI-2 interface and 36S Series design make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMM 36SX568-ML? Contact us for advice about your embedded vision project.
