DMM 36SX296-ML MIPI CSI-2
DMM 36SX296-ML
- Sony IMX296
- MIPI CSI-2 Camera

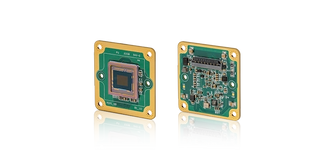

The Sony IMX296 MIPI CSI-2 camera DMM 36SX296-ML is a monochrome embedded vision camera with a Sony Pregius IMX296 global shutter sensor. With 1440×1080 resolution and 60 fps at full resolution, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMM 36SX296-ML uses a 1/2.9 inch Sony IMX296 CMOS Pregius sensor and connects through MIPI CSI-2. Its design makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX296 sensor for embedded vision
The DMM 36SX296-ML is built around the Sony IMX296 image sensor. This Sony Pregius sensor combines global shutter technology with a 1440×1080 resolution, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than a high megapixel count.
Sony Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire object before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DMM 36SX296-ML |
Monochrome MIPI CSI-2 camera with Sony IMX296 sensor
This monochrome MIPI CSI-2 camera outputs monochrome images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. This can reduce the processing needed for color interpolation and can help preserve edge sharpness and light sensitivity compared with color cameras.
For embedded vision, this makes the DMM 36SX296-ML especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter MIPI CSI-2 camera for moving objects
The DMM 36SX296-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. Exposing every pixel simultaneously helps eliminate spatial distortion during high-speed motion.
Applications for the Sony IMX296 MIPI CSI-2 camera
The DMM 36SX296-ML is suitable for embedded vision applications where a monochrome camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36SX296-ML for embedded vision projects
Choose the DMM 36SX296-ML when your project needs a Sony IMX296 MIPI CSI-2 camera with global shutter and monochrome output at 60 fps. Its MIPI CSI-2 interface and Sony Pregius sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMM 36SX296-ML? Contact us for advice about your embedded vision project.
