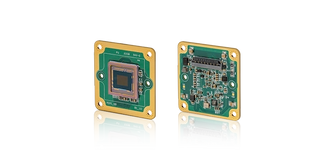

DMM 36SR2020-ML MIPI CSI-2
DMM 36SR2020-ML
- AR2020
- MIPI CSI-2 Camera
The AR2020 MIPI CSI-2 camera DMM 36SR2020-ML is a monochrome embedded vision camera with a CMOS rolling shutter sensor. With 5120×3840 resolution, 30 fps at full resolution and 19.7 MP, this camera is intended for embedded vision systems that capture high-resolution images.
The DMM 36SR2020-ML uses a 1/1.8 inch AR2020 CMOS sensor and connects through a MIPI CSI-2 interface. As part of the 36S Series, it integrates with embedded platforms and OEM vision products that utilize MIPI CSI-2.
AR2020 sensor for embedded vision
The DMM 36SR2020-ML is built around the AR2020 image sensor. This CMOS rolling shutter sensor provides 5120×3840 resolution at 19.7 megapixels and runs at up to 30 frames per second at full resolution.
Specifications
| Part number | DMM 36SR2020-ML |
| Category | MIPI CSI-2 |
| Megapixel | 19.7 MP |
| Resolution | 5120x3840 |
| Frame rate | 30 |
| Sensor format | 1/1.8" |
| Sensor | AR2020 |
| Sensor Type | CMOS |
| Shutter Type | Rolling |
| Color/ Mono | Monochrome |
| Trigger | true |
| Mass | 4 g |
| Heigth | 30 mm |
| Length | 6 mm |
| Width | 30 mm |
Monochrome MIPI CSI-2 camera with AR2020 sensor
This monochrome MIPI CSI-2 camera outputs grayscale images without color information. Unlike a color camera, it does not record RGB data, focusing acquisition on intensity values.
Rolling shutter MIPI CSI-2 camera
The DMM 36SR2020-ML is a rolling shutter MIPI CSI-2 camera. Rolling shutter sensors expose and read out the image sequentially, line by line.
Applications for the AR2020 MIPI CSI-2 camera
The DMM 36SR2020-ML is suitable for embedded vision applications where a monochrome MIPI CSI-2 camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36SR2020-ML for embedded vision projects
Choose the DMM 36SR2020-ML when your project needs a 19.7 MP AR2020 MIPI CSI-2 camera with rolling shutter, monochrome output and 30 fps at full resolution. Its 1/1.8 inch sensor and MIPI CSI-2 interface make it a practical camera module for embedded vision systems.
