DMM 36SR0521-ML MIPI CSI-2
DMM 36SR0521-ML
- AR0521
- MIPI CSI-2 Camera

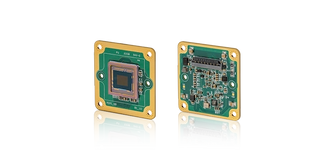

The AR0521 MIPI CSI-2 camera DMM 36SR0521-ML is a monochrome embedded vision camera with a CMOS rolling shutter sensor. With 2592×1944 resolution, 60 fps at full resolution and a 5 MP format, it supports embedded vision systems that capture detailed grayscale images.
The DMM 36SR0521-ML uses a 1/2.5 inch AR0521 CMOS sensor and connects through a MIPI CSI-2 interface. As part of the 36S Series, it is geared toward integration in embedded systems, robotics, inspection devices and OEM vision products that require an industry-standard MIPI CSI-2 connection.
AR0521 sensor for embedded vision
The DMM 36SR0521-ML is built around the AR0521 image sensor. This CMOS sensor combines a rolling shutter architecture with 5 MP (2592×1944) resolution, offering a balance of image detail and frame rate for embedded vision tasks where monochrome imaging is preferred.
More info| Part number | DMM 36SR0521-ML |
Monochrome MIPI CSI-2 camera with AR0521 sensor
This monochrome MIPI CSI-2 camera outputs grayscale images. A monochrome camera is often selected when the application does not require color information but does need consistent contrast and straightforward image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to compute RGB values, which helps preserve luminance detail for grayscale analysis.
Rolling shutter MIPI CSI-2 camera
The DMM 36SR0521-ML is a rolling shutter MIPI CSI-2 camera. Rolling shutter sensors expose and read out the image line by line, a method widely used in embedded imaging.
When motion is controlled or moderate, rolling shutter acquisition provides efficient high-resolution capture at up to 60 fps.
MIPI CSI-2 interface for embedded integration
MIPI CSI-2 is a common camera interface on embedded platforms and supports high-speed data transfer from sensor to host. Using MIPI CSI-2 helps simplify connection to compatible processors and development boards for prototyping and deployment.
Applications for the AR0521 MIPI CSI-2 camera
The DMM 36SR0521-ML is suitable for embedded vision applications where a monochrome MIPI CSI-2 camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Object detection
- Barcode and code reading
- Measurement systems
- Embedded vision development and prototyping
DMM 36SR0521-ML for embedded vision projects
Choose the DMM 36SR0521-ML when your project needs a monochrome AR0521 MIPI CSI-2 camera with rolling shutter capture and 5 MP resolution at up to 60 fps. Its MIPI CSI-2 interface and 1/2.5 inch sensor format make it a practical option for embedded vision platforms.
