DMM 36CX296-ML FPD-Link III
DMM 36CX296-ML
- Sony IMX296
- FPD-Link III Camera

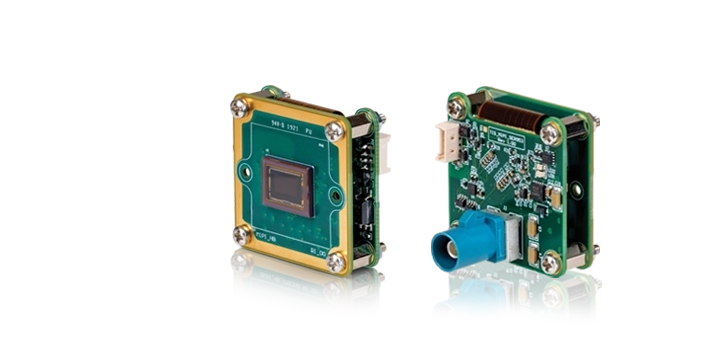

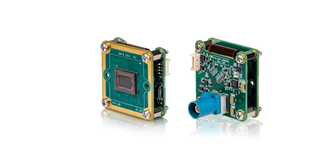

The Sony IMX296 FPD-Link III camera DMM 36CX296-ML is a monochrome embedded vision camera with a Sony Pregius IMX296 global shutter sensor. With 1440×1080 resolution, 60 fps and monochrome output, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMM 36CX296-ML uses a 1/2.9 inch Sony IMX296 CMOS Pregius sensor and connects through FPD-Link III. As part of the 36C Series, it is suitable for embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX296 sensor for embedded vision
The DMM 36CX296-ML is built around the Sony IMX296 image sensor. This Sony Pregius sensor combines global shutter technology with a 1440×1080 resolution, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than a high megapixel count.
Sony Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire object before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DMM 36CX296-ML |
Monochrome FPD-Link III camera with Sony IMX296 sensor
This monochrome FPD-Link III camera outputs monochrome images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Color cameras use a Bayer pattern, which can reduce sharpness compared with monochrome cameras. Monochrome cameras can also be more light sensitive than color cameras.
For embedded vision, this makes the DMM 36CX296-ML especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter FPD-Link III camera for moving objects
The DMM 36CX296-ML is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the Sony IMX296 FPD-Link III camera
The DMM 36CX296-ML is suitable for embedded vision applications where a monochrome global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36CX296-ML for embedded vision projects
Choose the DMM 36CX296-ML when your project needs a Sony IMX296 FPD-Link III camera with global shutter and monochrome output at 60 fps. Its FPD-Link III interface and Sony Pregius sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMM 36CX296-ML? Contact us for advice about your embedded vision project.
