DMM 36CR0234-ML FPD-Link III
DMM 36CR0234-ML
- AR0234
- FPD-Link III Camera

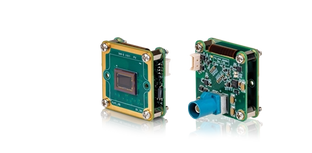

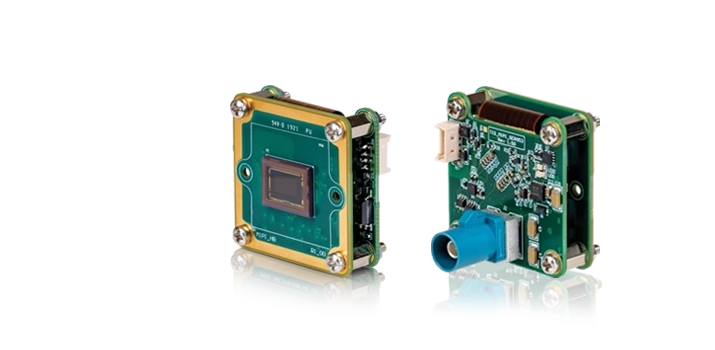

The AR0234 FPD-Link III camera DMM 36CR0234-ML is a monochrome embedded vision camera with a global shutter CMOS sensor. With 1920×1200 resolution and up to 100 fps at full resolution, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMM 36CR0234-ML uses a 1/2.6 inch AR0234 CMOS sensor and connects through FPD-Link III. This setup makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
AR0234 sensor for embedded vision
The DMM 36CR0234-ML is built around the AR0234 image sensor. This global shutter CMOS sensor pairs a 1920×1200 resolution with high frame rates, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than a high megapixel count.
More info| Part number | DMM 36CR0234-ML |
Monochrome FPD-Link III camera with AR0234 sensor
This monochrome FPD-Link III camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values, helping avoid the interpolation required for color reconstruction.
Global shutter FPD-Link III camera for moving objects
The DMM 36CR0234-ML is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the AR0234 FPD-Link III camera
The DMM 36CR0234-ML is suitable for embedded vision applications where a monochrome global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMM 36CR0234-ML for embedded vision projects
Choose the DMM 36CR0234-ML when your project needs an AR0234 FPD-Link III camera with global shutter and monochrome output, delivering up to 100 fps at 1920×1200. Its FPD-Link III interface and 1/2.6 inch sensor format make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMM 36CR0234-ML? Contact us for advice about your embedded vision project.
