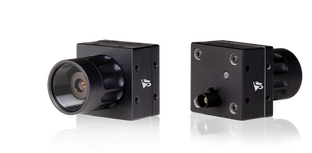

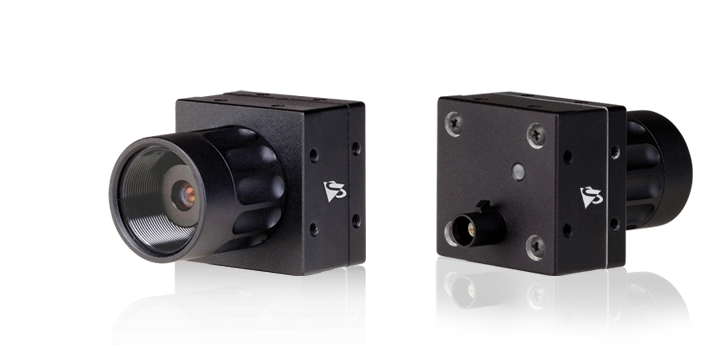

DMK 36CX335-I67 FPD-Link III
DMK 36CX335-I67
- IMX335
- FPD-Link III Camera
The IMX335 FPD-Link III camera DMK 36CX335-I67 is a monochrome embedded vision camera with a CMOS STARVIS IMX335 rolling shutter sensor. With 2592×1944 resolution, 30 fps at full resolution and a 5 MP sensor, this camera is suitable for embedded vision systems that require grayscale imaging at a moderate frame rate.
The DMK 36CX335-I67 uses a 1/2.8 inch IMX335 CMOS STARVIS sensor and connects through FPD-Link III. Its configuration supports integration into embedded systems that route image data from a camera module to a processing unit over an FPD-Link III connection.
IMX335 sensor for embedded vision
The DMK 36CX335-I67 is built around the IMX335 image sensor. This CMOS STARVIS rolling shutter sensor combines a 2592×1944 resolution with a 1/2.8 inch optical format, making it a practical choice for projects that prioritize 5 MP detail and consistent grayscale imaging.
Rolling shutter technology reads out rows of pixels sequentially. This method is well suited to many embedded and machine vision tasks where motion is moderate or controlled, and it helps deliver high-resolution frames without the complexity of a global shutter architecture.
More info| Part number | DMK 36CX335-I67 |
Monochrome FPD-Link III camera with IMX335 sensor
This monochrome FPD-Link III camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information but does need stable image processing and clear contrast.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Color cameras use a Bayer pattern, and this can reduce effective sharpness compared with monochrome cameras. Monochrome cameras can also be more light sensitive than color cameras in comparable conditions.
Rolling shutter FPD-Link III camera for controlled motion
The DMK 36CX335-I67 is a rolling shutter FPD-Link III camera. Rolling shutter sensors expose and read out lines in sequence, which can introduce geometric distortion with fast motion, but they are widely used in applications with static scenes, limited motion or synchronized, controlled movement.
For embedded vision setups with fixtures, robotics tasks with predictable motion, conveyor systems at moderate speeds or positioning systems under controlled lighting, a rolling shutter camera can provide reliable results when paired with appropriate exposure and illumination.
Applications for the IMX335 FPD-Link III camera
The DMK 36CX335-I67 is suitable for embedded vision applications where a monochrome FPD-Link III board camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis with controlled movement
- Object detection
- Barcode and code reading
- Measurement systems
DMK 36CX335-I67 for embedded vision projects
Choose the DMK 36CX335-I67 when your project needs an IMX335 FPD-Link III camera with rolling shutter, monochrome output and 5 MP images at 30 fps. Its FPD-Link III connection and 1/2.8 inch CMOS STARVIS sensor make it a practical camera module for embedded vision projects.
Need help selecting the right lens, cable or embedded platform for the DMK 36CX335-I67? Contact us for advice about your embedded vision project.
