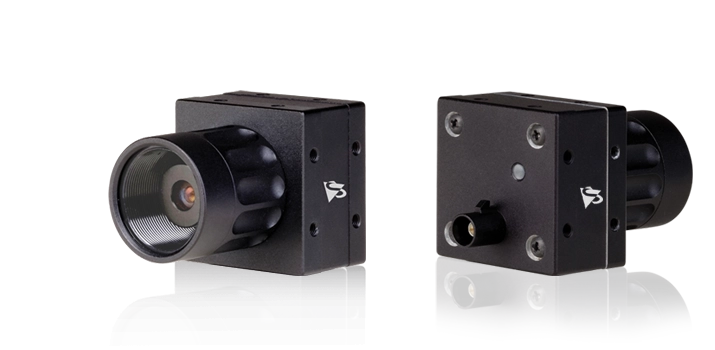

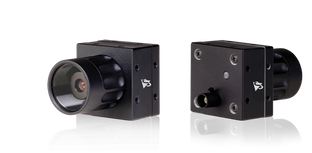

DMK 36CX297-I67 FPD-Link III
DMK 36CX297-I67
- Sony IMX297
- FPD-Link III Camera
The Sony IMX297 FPD-Link III camera DMK 36CX297-I67 is a monochrome embedded vision camera with a Sony Pregius IMX297 global shutter sensor. With 720×540 resolution and 120 fps at full resolution, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DMK 36CX297-I67 uses a 1/2.9 inch Sony IMX297 CMOS Pregius sensor and connects through an FPD-Link III interface.
Sony IMX297 sensor for embedded vision
The DMK 36CX297-I67 is built around the Sony IMX297 image sensor. This Sony Pregius sensor combines global shutter technology with a 720×540 resolution, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than a high megapixel count.
Sony Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire object before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DMK 36CX297-I67 |
Monochrome FPD-Link III camera with Sony IMX297 sensor
This monochrome FPD-Link III camera outputs monochrome images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Color cameras use a Bayer pattern, which can reduce sharpness compared with monochrome cameras. Monochrome cameras can also be more light sensitive than color cameras.
For embedded vision, this makes the DMK 36CX297-I67 especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter FPD-Link III camera for moving objects
The DMK 36CX297-I67 is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. The global shutter approach exposes every pixel simultaneously, helping eliminate spatial distortion during high-speed motion.
Applications for the Sony IMX297 FPD-Link III camera
The DMK 36CX297-I67 is suitable for embedded vision applications where a monochrome camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMK 36CX297-I67 for embedded vision projects
Choose the DMK 36CX297-I67 when your project needs a Sony IMX297 FPD-Link III camera with global shutter and monochrome output at 120 fps. Its FPD-Link III interface and Sony Pregius sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DMK 36CX297-I67? Contact us for advice about your embedded vision project.
