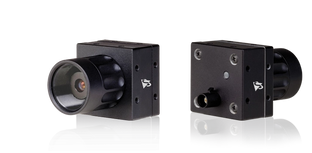

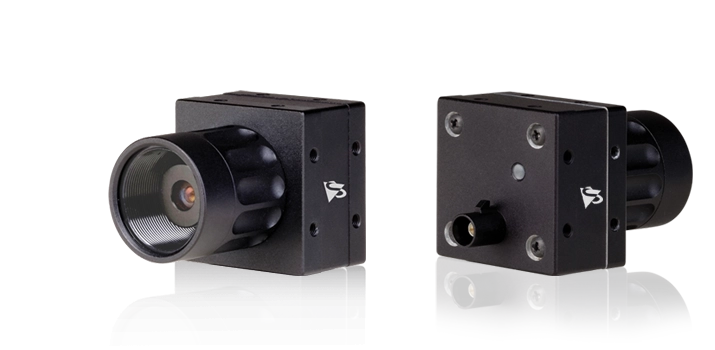

DMK 36CR0234-I67 FPD-Link III
DMK 36CR0234-I67
- AR0234
- FPD-Link III Camera
The AR0234 FPD-Link III camera DMK 36CR0234-I67 is a monochrome industrial vision camera built around a global shutter CMOS sensor. With 1920×1200 resolution, 2.3 MP and 100 fps at full resolution, it is suited to systems that require consistent image capture of moving scenes.
The DMK 36CR0234-I67 uses a 1/2.6 inch AR0234 CMOS sensor and transmits image data over FPD-Link III. As a member of the 36C Series, it offers a monochrome output path and a global shutter design within an FPD-Link III configuration for remote sensor-to-processor setups.
AR0234 sensor for machine vision
The DMK 36CR0234-I67 is built around the AR0234 image sensor. This global shutter CMOS device provides a 1920×1200 resolution at 2.3 megapixels and supports high-speed acquisition at 100 frames per second, making it practical for scenes where motion must be captured without per-line delay.
More info| Part number | DMK 36CR0234-I67 |
Monochrome FPD-Link III camera with AR0234 sensor
This monochrome FPD-Link III camera outputs grayscale images, which can be advantageous when color information is not required. Without a color filter array, monochrome capture emphasizes luminance detail and can simplify image processing pipelines that rely on contrast and edge information.
Global shutter FPD-Link III camera for moving objects
The DMK 36CR0234-I67 features a global shutter, which exposes all pixels simultaneously to help avoid the shape changes that can be introduced by rolling readout when imaging motion.
Combined with 100 fps at full 1920×1200 resolution, this makes it suitable for capturing moving parts and time-critical events through an FPD-Link III connection.
Applications for the AR0234 FPD-Link III camera
The DMK 36CR0234-I67 is suitable for vision applications where a monochrome global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DMK 36CR0234-I67 for vision projects with FPD-Link III
Choose the DMK 36CR0234-I67 when your project needs an AR0234-based FPD-Link III camera with global shutter, monochrome output, 2.3 MP resolution, 1920×1200 imaging and 100 fps performance. Its combination of FPD-Link III transport, 1/2.6 inch sensor format and monochrome global shutter imaging makes it a straightforward option for systems that prioritize motion capture and precise timing.
Need help selecting accessories or a processing platform for the DMK 36CR0234-I67? Contact us for guidance on your vision project.
