DFM 36SX900-ML MIPI CSI-2
DFM 36SX900-ML
- Sony IMX900
- MIPI CSI-2 Camera

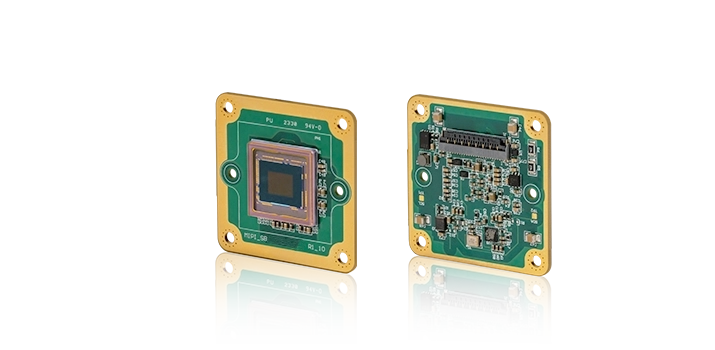

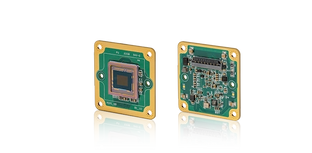

The Sony IMX900 MIPI CSI-2 camera DFM 36SX900-ML is a color embedded vision camera with a Sony Pregius S IMX900 global shutter sensor. With 2048×1536 resolution, 3.1 MP output, 117 fps at full resolution and color imaging, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DFM 36SX900-ML uses a 1/3.1 inch Sony IMX900 CMOS Pregius S sensor and connects through a MIPI CSI-2 interface. Its design makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX900 sensor for embedded vision
The DFM 36SX900-ML is built around the Sony IMX900 image sensor. This Sony Pregius S sensor combines global shutter technology with a 2048×1536 resolution, supporting applications that require accurate capture of motion and consistent image acquisition.
Sony Pregius S technology is developed for global shutter CMOS sensors and is commonly used in high-speed, high-precision factory automation and machine vision tasks. Global shutter technology captures the entire scene before readout, helping to avoid distortion when imaging fast-moving objects.
More info| Part number | DFM 36SX900-ML |
Color MIPI CSI-2 camera with Sony IMX900 sensor
This color MIPI CSI-2 camera outputs color images. A color camera is often chosen when the application requires color information for classification, identification or visualization.
Color cameras typically use a Bayer pattern to reconstruct RGB values.
Global shutter MIPI CSI-2 camera for moving objects
The DFM 36SX900-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the Sony IMX900 MIPI CSI-2 camera
The DFM 36SX900-ML is suitable for embedded vision applications where a color global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Color sorting and identification
- Measurement systems
DFM 36SX900-ML for embedded vision projects
Choose the DFM 36SX900-ML when your project needs a Sony IMX900 MIPI CSI-2 camera with global shutter, color output and reliable image capture at up to 117 fps. Its MIPI CSI-2 interface and Sony Pregius S sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFM 36SX900-ML? Contact us for advice about your embedded vision project.
