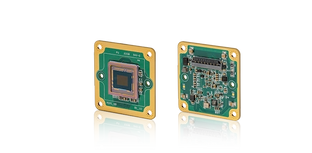

DFM 36SX568-ML MIPI CSI-2
DFM 36SX568-ML
- Sony IMX568
- MIPI CSI-2 Camera
The Sony IMX568 MIPI CSI-2 camera DFM 36SX568-ML is a color embedded vision camera with a CMOS Pregius S IMX568 global shutter sensor. With a 2448 × 2048 resolution, 79 fps and a 5 MP format, this camera is designed for embedded vision systems that need reliable color image capture of moving objects.
The DFM 36SX568-ML uses a 1/1.8-inch IMX568 CMOS Pregius S sensor and connects through a MIPI CSI-2 interface. Its design makes it suitable for embedded systems, robotics, inspection devices and OEM vision products where a MIPI CSI-2 camera module is required.
IMX568 sensor for embedded vision
The DFM 36SX568-ML is built around the Sony IMX568 image sensor. This Pregius S global shutter sensor combines global shutter technology with a 2448 × 2048 resolution in a 5 MP format and a frame rate of up to 79 fps.
This makes it a strong choice for applications where speed, color information and repeatable image capture are more important than very high megapixel counts. Pregius S is developed for global shutter CMOS sensors and is intended for high-speed, high-precision factory automation and machine vision applications.
Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DFM 36SX568-ML |
Color MIPI CSI-2 camera with IMX568 sensor
This color MIPI CSI-2 camera outputs color images. A color camera is often the best choice when an application requires color information for sorting, identification or reading colored marks.
Color cameras use a Bayer pattern to calculate RGB values. This can result in slightly lower image sharpness than a monochrome camera, while monochrome cameras can also offer greater light sensitivity. The right option depends on whether color information or maximum sensitivity and image detail are more important for the application.
Global shutter MIPI CSI-2 camera for moving objects
The DFM 36SX568-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, helping to capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications involving moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. By exposing every pixel simultaneously, global shutter architecture helps prevent spatial distortion during high-speed motion.
Applications for the IMX568 MIPI CSI-2 camera
The DFM 36SX568-ML is suitable for embedded vision applications where a color MIPI CSI-2 camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Color sorting and classification
- Barcode and code reading
- Measurement systems
DFM 36SX568-ML for embedded vision projects
Choose the DFM 36SX568-ML when your project needs a Sony IMX568 MIPI CSI-2 camera with global shutter, color output and dependable image capture at up to 79 fps.
Its MIPI CSI-2 interface, 1/1.8-inch sensor format and Pregius S global shutter design make it a practical camera module for embedded vision camera systems that require 5 MP resolution and consistent results.
Need help selecting components for the DFM 36SX568-ML?
Need help selecting the right lens, cable or embedded platform for the DFM 36SX568-ML? Visit our contact page for advice about your embedded vision project.
