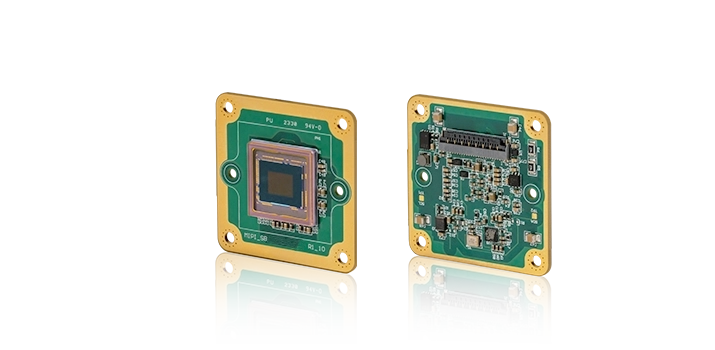

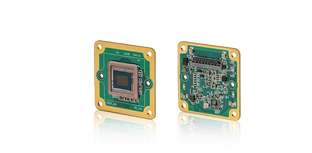

DFM 36SX462-ML MIPI CSI-2
DFM 36SX462-ML
- Sony IMX462
- MIPI CSI-2 Camera
The Sony IMX462 MIPI CSI-2 camera DFM 36SX462-ML is a color embedded vision camera with a Sony STARVIS IMX462 rolling shutter sensor. With 1920×1080 resolution and 120 fps at full resolution, this camera is intended for embedded vision systems that require color image capture.
The DFM 36SX462-ML uses a 1/2.8 inch Sony IMX462 CMOS STARVIS sensor and connects through a MIPI CSI-2 interface. It is part of the 36S Series.
Sony IMX462 sensor for embedded vision
The DFM 36SX462-ML is built around the Sony IMX462 image sensor. This CMOS STARVIS sensor combines a rolling shutter with a 1920×1080 resolution in a 2.1 MP format, making it suitable for embedded applications that use a MIPI CSI-2 connection and need color imaging.
Specifications
| Part number | DFM 36SX462-ML |
| Category | MIPI CSI-2 |
| Megapixel | 2.1 MP |
| Resolution | 1920x1080 |
| Frame rate | 120 |
| Sensor format | 1/2.8" |
| Sensor | IMX462 |
| Sensor Type | CMOS STARVIS |
| Shutter Type | Rolling |
| Color/ Mono | Color |
| Mass | 4 g |
| Heigth | 30 mm |
| Length | 6 mm |
| Width | 30 mm |
Color MIPI CSI-2 camera with Sony IMX462 sensor
This color MIPI CSI-2 camera outputs color images. A color camera is chosen when the application requires color information for tasks such as identification or visualization, rather than grayscale-only analysis.
Rolling shutter MIPI CSI-2 camera
The DFM 36SX462-ML uses a rolling shutter sensor, which exposes image rows sequentially. The 120 fps frame rate at 1920×1080 provides a high-throughput image stream for embedded processing over MIPI CSI-2.
Applications for the Sony IMX462 MIPI CSI-2 camera
The DFM 36SX462-ML is suitable for embedded vision applications where a color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFM 36SX462-ML for embedded vision projects
Choose the DFM 36SX462-ML when your project needs a Sony IMX462 MIPI CSI-2 camera with rolling shutter, color output and 120 fps performance. Its MIPI CSI-2 interface, 1/2.8 inch sensor format and 36S Series platform make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFM 36SX462-ML? Contact us for advice about your embedded vision project.
