DFM 36SX296-ML MIPI CSI-2
DFM 36SX296-ML
- Sony IMX296
- MIPI CSI-2 Camera

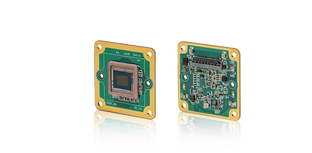

The Sony IMX296 MIPI CSI-2 camera DFM 36SX296-ML is a color embedded vision camera with a Sony Pregius IMX296 global shutter sensor. With 1440×1080 resolution and 60 fps at full resolution, this camera is designed for embedded vision systems that need reliable color image capture of moving objects.
The DFM 36SX296-ML uses a 1/2.9 inch Sony IMX296 CMOS Pregius sensor and connects through MIPI CSI-2. It is suitable for embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX296 sensor for embedded vision
The DFM 36SX296-ML is built around the Sony IMX296 image sensor. This Sony Pregius sensor combines global shutter technology with a 1.6 MP (1440×1080) resolution, making it a strong choice for applications where speed, contrast and repeatable image capture are more important than very high megapixel counts.
Sony Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DFM 36SX296-ML |
Color MIPI CSI-2 camera with Sony IMX296 sensor
This color MIPI CSI-2 camera provides color images. A color camera is often the best choice when the application requires hue or color contrast information alongside intensity for tasks such as sorting, identification and visualization.
Unlike a monochrome camera, a color camera uses a color filter array and demosaicing to reproduce RGB information for downstream processing.
Global shutter MIPI CSI-2 camera for moving objects
The DFM 36SX296-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
At up to 60 fps at full resolution, the DFM 36SX296-ML supports image capture in embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the Sony IMX296 MIPI CSI-2 camera
The DFM 36SX296-ML is suitable for embedded vision applications where a color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFM 36SX296-ML for embedded vision projects
Choose the DFM 36SX296-ML when your project needs a Sony IMX296 MIPI CSI-2 camera with global shutter, color output and reliable image capture at 60 fps. Its MIPI CSI-2 interface and Sony Pregius sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFM 36SX296-ML? Contact us for advice about your embedded vision project.
