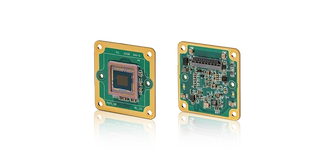

DFM 36SR2020-ML MIPI CSI-2
DFM 36SR2020-ML
- AR2020
- MIPI CSI-2 Camera
The AR2020 MIPI CSI-2 camera DFM 36SR2020-ML is a color embedded vision camera with a CMOS AR2020 rolling shutter sensor. With 5120×3840 resolution, 30 fps at full resolution, and 19.7 MP color imaging, this camera is designed for embedded vision systems that need high-resolution color capture.
The DFM 36SR2020-ML uses a 1/1.8 inch AR2020 CMOS sensor and connects through the MIPI CSI-2 interface. As part of the 36S Series in the MIPI CSI-2 category, it integrates into embedded systems that require a standardized serial camera link.
AR2020 sensor for embedded vision
The DFM 36SR2020-ML is built around the AR2020 image sensor. This CMOS sensor pairs a rolling shutter architecture with a 5120×3840 resolution at up to 30 fps, supporting 19.7 MP color capture for detailed imaging tasks.
Specifications
| Part number | DFM 36SR2020-ML |
| Category | MIPI CSI-2 |
| Megapixel | 19.7 MP |
| Resolution | 5120x3840 |
| Frame rate | 30 |
| Sensor format | 1/1.8" |
| Sensor | AR2020 |
| Sensor Type | CMOS |
| Shutter Type | Rolling |
| Color/ Mono | Color |
| Trigger | true |
| Mass | 4 g |
| Heigth | 30 mm |
| Length | 6 mm |
| Width | 30 mm |
Color MIPI CSI-2 camera with AR2020 sensor
This color MIPI CSI-2 camera outputs color images. A color camera is often chosen when the application benefits from color information for identification, differentiation or documentation of parts and scenes.
Rolling shutter MIPI CSI-2 camera
The DFM 36SR2020-ML uses a rolling shutter. Rolling shutter sensors read out the image line by line, which is common in high-resolution CMOS devices and can be effective for static or moderately moving scenes under controlled illumination.
Applications for the AR2020 MIPI CSI-2 camera
The DFM 36SR2020-ML is suitable for embedded vision applications where a high-resolution color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Object detection and classification
- Measurement and documentation
- Embedded vision prototyping
- General-purpose color imaging
DFM 36SR2020-ML for high-resolution embedded vision projects
Choose the DFM 36SR2020-ML when your project needs a color MIPI CSI-2 camera with an AR2020 CMOS sensor, 1/1.8 inch format, 5120×3840 resolution and 30 fps. Its place in the 36S Series and MIPI CSI-2 category makes it a practical option for embedded vision systems that require high-resolution color output.
Need help selecting the right lens, cable or embedded platform for the DFM 36SR2020-ML? Contact us for advice about your embedded vision project.
