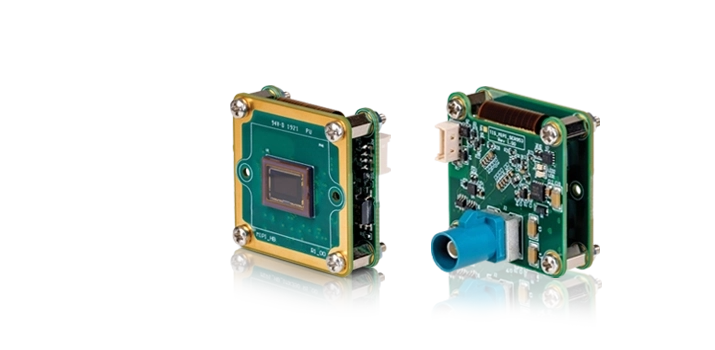

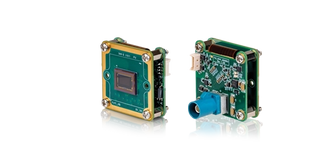

DFM 36CX390-ML FPD-Link III
DFM 36CX390-ML
- Sony IMX390
- FPD-Link III Camera
The Sony IMX390 FPD-Link III camera DFM 36CX390-ML is a color embedded vision camera with a Sony IMX390 rolling shutter CMOS sensor. With 1920×1200 resolution, 2.3 MP, 50 fps at full resolution and color output, this camera is designed for embedded vision systems that require detailed imaging with RGB information.
The DFM 36CX390-ML uses a 1/2.6 inch Sony IMX390 CMOS sensor and connects via an FPD-Link III interface. Its form factor makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX390 sensor for embedded vision
The DFM 36CX390-ML is built around the Sony IMX390 image sensor. This CMOS sensor pairs a 1920×1200 resolution with color imaging and a rolling shutter, offering a balance of detail and integration for embedded applications that benefit from color information.
More info| Part number | DFM 36CX390-ML |
Color FPD-Link III camera with Sony IMX390 sensor
This color FPD-Link III camera outputs color images. A color camera is often the preferred choice when the application requires RGB data for identification, classification or visualization, while maintaining straightforward processing in embedded vision workflows.
Unlike a monochrome camera, a color camera uses a color filter array to reproduce color information, which can be important when hue, contrast between colors or visual context are part of the task.
Rolling shutter FPD-Link III camera
The DFM 36CX390-ML is a rolling shutter FPD-Link III camera. Rolling shutter sensors expose the image line by line during readout, which is suitable for many embedded vision and general imaging tasks.
At 50 fps and full 1920×1200 resolution, developers can balance exposure and frame rate settings for their scene and lighting conditions.
In applications with motion, rolling shutter behavior differs from global shutter. Appropriate lighting, exposure timing and scene setup help achieve consistent results when objects or the camera are moving.
Applications for the Sony IMX390 FPD-Link III camera
The DFM 36CX390-ML is suitable for embedded vision applications where a color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Object detection
- Color-based identification and sorting
- Presence and alignment checks
- Embedded OEM vision products
DFM 36CX390-ML for embedded vision projects
Choose the DFM 36CX390-ML when your project needs a Sony IMX390 FPD-Link III camera with rolling shutter, color output and 50 fps at 1920×1200 resolution. Its FPD-Link III interface and 1/2.6 inch sensor format make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFM 36CX390-ML? Contact us for advice about your embedded vision project.
