DFM 36CX297-ML FPD-Link III
DFM 36CX297-ML
- IMX297
- FPD-Link III Camera

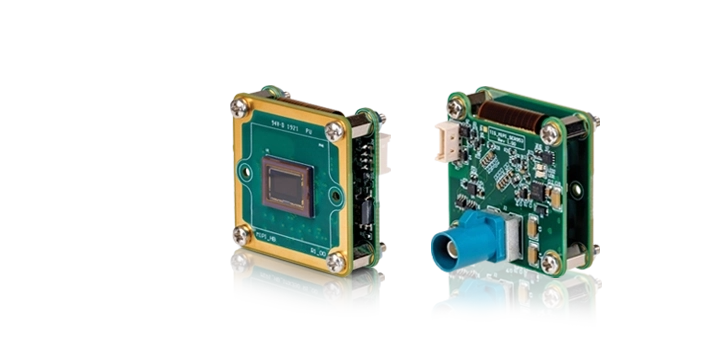

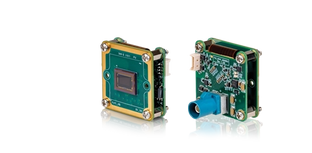

The IMX297 FPD-Link III camera DFM 36CX297-ML is a color embedded vision camera with a CMOS Pregius IMX297 global shutter sensor. With 720×540 resolution and 120 fps at full resolution, this camera is designed for embedded vision systems that need reliable image capture of moving objects.
The DFM 36CX297-ML uses a 1/2.9 inch IMX297 CMOS Pregius sensor and connects through an FPD-Link III interface. It is suitable for embedded systems, robotics, inspection devices and OEM vision products.
IMX297 sensor for embedded vision
The DFM 36CX297-ML is built around the IMX297 image sensor. This CMOS Pregius sensor combines global shutter technology with a 720×540 resolution, making it a strong choice for applications where consistent capture of motion is more important than a high megapixel count.
CMOS Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | DFM 36CX297-ML |
Color FPD-Link III camera with IMX297 sensor
This color FPD-Link III camera outputs color images. A color camera is often the best choice when the application requires color information along with stable image processing.
For embedded vision, this makes the DFM 36CX297-ML especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where color information is enough.
Global shutter FPD-Link III camera for moving objects
The DFM 36CX297-ML is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the IMX297 FPD-Link III camera
The DFM 36CX297-ML is suitable for embedded vision applications where a color global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFM 36CX297-ML for embedded vision projects
Choose the DFM 36CX297-ML when your project needs an FPD-Link III camera with a CMOS Pregius IMX297 global shutter sensor, color output and reliable image capture at 120 fps.
Need help selecting the right lens, cable or embedded platform for the DFM 36CX297-ML? Contact us for advice about your embedded vision project.
