DFM 36CR0234-ML FPD-Link III
DFM 36CR0234-ML
- AR0234
- FPD-Link III Camera

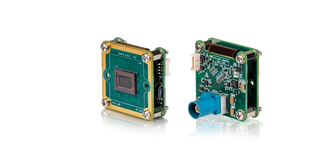

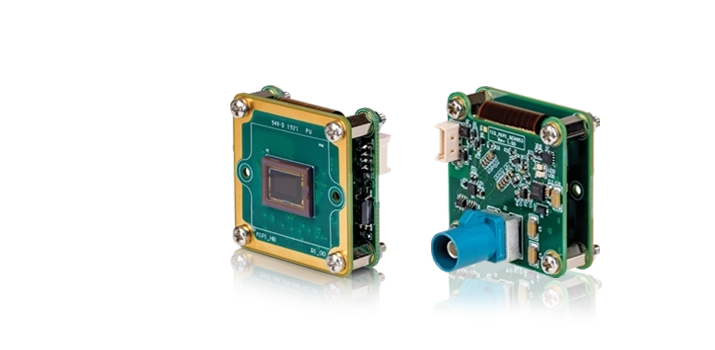

The AR0234 FPD-Link III camera DFM 36CR0234-ML is a color embedded vision camera with a global shutter CMOS sensor. With 1920×1200 resolution, 100 fps at full resolution, 2.3 MP and a 1/2.6 inch sensor format, this camera is suitable for vision systems that need reliable image capture of moving objects.
The DFM 36CR0234-ML uses a 1/2.6 inch AR0234 CMOS sensor and connects through FPD-Link III. Its design makes it suitable for integration into compact vision systems, robotics, inspection devices and OEM vision products.
AR0234 sensor for embedded vision
The DFM 36CR0234-ML is built around the AR0234 image sensor. This global shutter CMOS sensor combines a 1920×1200 resolution with fast image acquisition up to 100 fps, supporting applications where speed, contrast and repeatable capture are more important than very high megapixel counts.
More info| Part number | DFM 36CR0234-ML |
Color FPD-Link III camera with AR0234 sensor
This color FPD-Link III camera outputs color images. A color camera is the right choice when the application requires color information for detection, identification or analysis.
Color sensors typically use a color filter array to reconstruct RGB images, enabling processing workflows that depend on hue or color contrast.
Global shutter FPD-Link III camera for moving objects
The DFM 36CR0234-ML is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors in high-speed scenes.
Applications for the AR0234 FPD-Link III camera
The DFM 36CR0234-ML is suitable for embedded vision applications where a compact color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFM 36CR0234-ML for embedded vision projects
Choose the DFM 36CR0234-ML when your project needs a color FPD-Link III camera with a global shutter, 1920×1200 resolution at up to 100 fps and 2.3 MP. Its AR0234 CMOS sensor and 1/2.6 inch optical format make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFM 36CR0234-ML? Contact us for advice about your embedded vision project.
