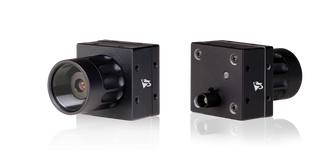

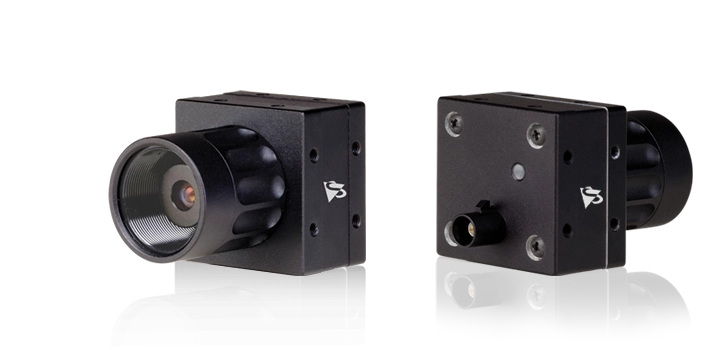

DFK 36CX297-I67 FPD-Link III
DFK 36CX297-I67
- Sony IMX297
- FPD-Link III Camera
The Sony IMX297 FPD-Link III camera DFK 36CX297-I67 is a color embedded vision camera with a Sony Pregius IMX297 global shutter sensor. With 720×540 resolution, 0.4 MP and up to 120 fps at full resolution, it suits embedded vision systems that capture moving objects.
The DFK 36CX297-I67 uses a 1/2.9 inch Sony IMX297 CMOS Pregius sensor and connects through FPD-Link III. As part of the 36C Series, it can be integrated into embedded systems, robotics, inspection devices and OEM vision products.
Sony IMX297 sensor for embedded vision
The DFK 36CX297-I67 is built around the Sony IMX297 image sensor. This Sony Pregius global shutter sensor pairs a 1/2.9 inch format with a 720×540 resolution, supporting applications where motion is present and capture timing matters.
Sony’s Pregius technology is developed for global shutter CMOS sensors used in factory automation and machine vision. With a global shutter, the entire frame is exposed at once before readout, helping maintain object geometry when imaging fast motion.
More info| Part number | DFK 36CX297-I67 |
Color FPD-Link III camera with Sony IMX297 sensor
This color FPD-Link III camera outputs color images for applications that require hue or color contrast information. In a color camera, a Bayer color filter array and subsequent processing are used to derive RGB values from the sensor data.
For embedded vision, a color model is selected when color-based identification, sorting or visual feedback is part of the task, while still maintaining synchronized capture from a global shutter sensor.
Global shutter FPD-Link III camera for moving objects
The DFK 36CX297-I67 is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same time, which helps avoid the shape distortion that can occur with rolling shutter sensors when imaging fast-moving objects.
This characteristic is relevant for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or rapid positioning systems where consistent geometry in each frame is required.
Applications for the Sony IMX297 FPD-Link III camera
The DFK 36CX297-I67 is suitable for embedded vision applications where a color camera with global shutter is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
- Color-based identification and sorting
DFK 36CX297-I67 for embedded vision projects
Choose the DFK 36CX297-I67 when your project needs a Sony IMX297 FPD-Link III camera with global shutter, color output and 720×540 at up to 120 fps. Its 1/2.9 inch Sony Pregius sensor and FPD-Link III interface make it suitable for embedded vision systems that involve motion and precise capture timing.
Need help selecting the right lens, cable or embedded platform for the DFK 36CX297-I67? Contact us for advice about your embedded vision project.
