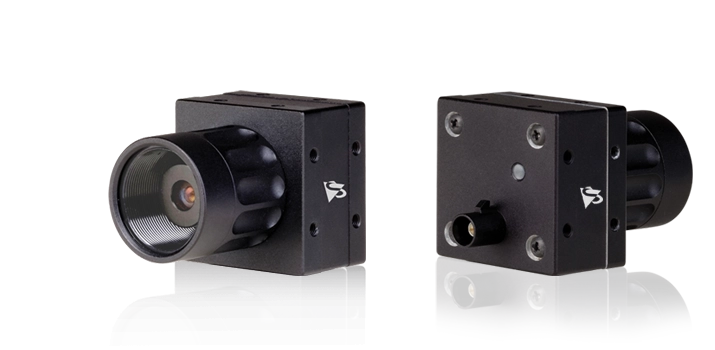

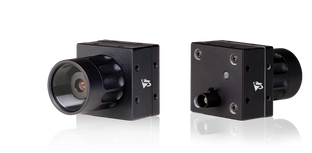

DFK 36CR0234-I67 FPD-Link III
DFK 36CR0234-I67
- AR0234
- FPD-Link III Camera
The AR0234 FPD-Link III camera DFK 36CR0234-I67 is a compact color embedded vision camera with a global shutter CMOS sensor. With 1920×1200 resolution, 100 fps at full resolution, a 2.3 MP image size and a 1/2.6 inch sensor format, this camera is suitable for vision systems that need dependable image capture of moving objects while preserving color information.
The DFK 36CR0234-I67 uses a 1/2.6 inch AR0234 CMOS sensor and connects through FPD-Link III. This interface supports linking the camera module to a processing unit in embedded and distributed designs used in robotics, inspection devices and OEM vision products.
AR0234 sensor for embedded vision
The DFK 36CR0234-I67 is built around the AR0234 image sensor. This global shutter CMOS sensor combines a 1920×1200 resolution with a 2.3 MP image size and a 1/2.6 inch optical format, making it a practical choice for applications where motion handling and consistent capture are more important than high megapixel counts.
More info| Part number | DFK 36CR0234-I67 |
Color FPD-Link III camera with AR0234 sensor
This color FPD-Link III camera outputs color images. A color camera is often selected when the task requires hue or color contrast information in addition to spatial detail.
Unlike a monochrome camera, a color camera uses a color filter array and demosaicing to produce RGB images. For embedded vision, this can be important when differentiating parts by color, identifying labels or when downstream processing depends on color features.
Global shutter FPD-Link III camera for moving objects
The DFK 36CR0234-I67 is a global shutter FPD-Link III camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the geometric distortion that can occur with rolling shutter sensors.
This matters for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems where shape integrity during motion is required.
Applications for the AR0234 FPD-Link III camera
The DFK 36CR0234-I67 is suitable for embedded vision applications where a compact color camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFK 36CR0234-I67 for embedded vision projects
Choose the DFK 36CR0234-I67 when your project needs an AR0234 FPD-Link III camera with a global shutter, color output and reliable image capture at up to 100 fps. Its FPD-Link III connection and global shutter CMOS sensor make it a practical camera module for embedded vision systems.
Need help selecting the right lens, cable or embedded platform for the DFK 36CR0234-I67? Contact us for advice about your embedded vision project.
