AcM 36DX900-I67 GMSL2
AcM 36DX900-I67
- Sony IMX900
- GMSL2 Camera

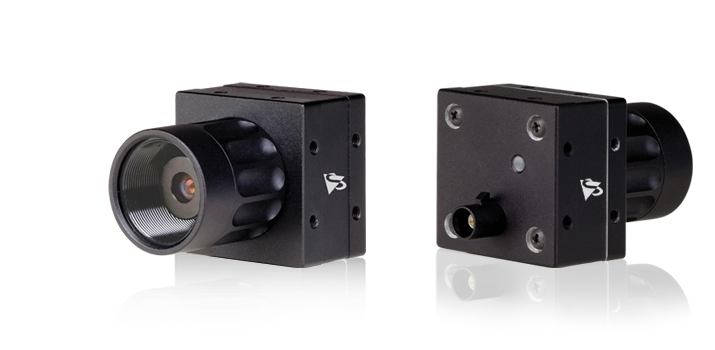

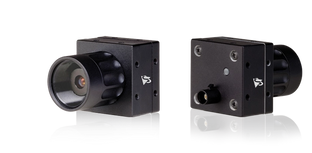

The Sony IMX900 GMSL2 camera AcM 36DX900-I67 is a monochrome camera with a Sony Pregius S IMX900 global shutter sensor. With 2048×1536 resolution and 80 fps at full resolution, its monochrome output supports reliable image capture of moving objects in machine vision systems.
The AcM 36DX900-I67 uses a 1/3.1 inch Sony IMX900 CMOS Pregius S sensor and connects via GMSL2. As part of the Acuva series, it provides 3.1 MP imaging for vision setups that need a direct sensor-to-processor link over GMSL2.
Sony IMX900 sensor for machine vision
The AcM 36DX900-I67 is built around the Sony IMX900 image sensor. This Sony Pregius S sensor combines global shutter technology with a 2048×1536 resolution, making it suitable for applications where consistent capture of fast motion is important.
Sony Pregius technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision applications. Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | AcM 36DX900-I67 |
Monochrome GMSL2 camera with Sony IMX900 sensor
This monochrome GMSL2 camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. This can avoid the interpolation step used in color reconstruction and can improve light sensitivity compared with color cameras.
For machine vision, this makes the AcM 36DX900-I67 especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter GMSL2 camera for moving objects
The AcM 36DX900-I67 is a global shutter camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for machine vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems.
Applications for the Sony IMX900 GMSL2 camera
The AcM 36DX900-I67 is suitable for machine vision applications where a monochrome global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
AcM 36DX900-I67 for GMSL2 vision projects
Choose the AcM 36DX900-I67 when your project needs a Sony IMX900 GMSL2 camera with global shutter, monochrome output and 80 fps at 2048×1536. Its GMSL2 interface and Sony Pregius S sensor make it a practical camera for machine vision systems.
Need help selecting the right lens, cable or platform for the AcM 36DX900-I67? Contact us for advice about your vision project.
