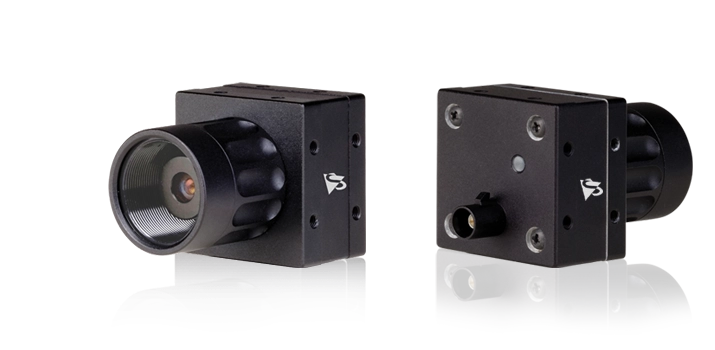

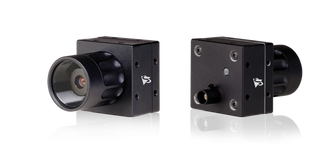

AcM 36DX568-I67 GMSL2
AcM 36DX568-I67
- Sony IMX568
- GMSL2 Camera
The Sony IMX568 GMSL2 camera AcM 36DX568-I67 is a monochrome vision camera with a Sony Pregius S IMX568 global shutter sensor. With 2448×2048 resolution, 50 fps at full resolution and 5 MP imaging, this camera is designed for vision systems that need reliable image capture of moving objects.
The AcM 36DX568-I67 uses a 1/1.8 inch Sony IMX568 CMOS Pregius S sensor and connects through a GMSL2 interface. This setup supports integration where a high-speed serialized link between the camera and host is required.
Sony IMX568 sensor for vision
The AcM 36DX568-I67 is built around the Sony IMX568 image sensor. This Sony Pregius S sensor combines global shutter technology with a 2448×2048 resolution, making it a strong choice for applications where motion handling, contrast and repeatable image capture are more important than a very high megapixel count.
Sony Pregius S technology is developed for global shutter CMOS sensors and is aimed at high-speed, high-precision factory automation and machine vision usage. Global shutter technology captures the entire scene before readout, helping to avoid focal plane distortion when imaging fast-moving objects.
More info| Part number | AcM 36DX568-I67 |
Monochrome GMSL2 camera with Sony IMX568 sensor
This monochrome GMSL2 camera outputs grayscale images. A monochrome camera is often the best choice when the application does not require color information, but does need sharp contrast, high light efficiency and stable image processing.
Unlike a color camera, a monochrome camera does not use a Bayer color filter to calculate RGB values. Removing the color filter can preserve fine luminance detail and support consistent edge definition for machine vision tasks.
For vision applications, this makes the AcM 36DX568-I67 especially interesting for barcode reading, object detection, motion analysis, measurement tasks and inspection systems where grayscale information is enough.
Global shutter GMSL2 camera for moving objects
The AcM 36DX568-I67 is a global shutter GMSL2 camera. Global shutter sensors expose all pixels at the same moment, which helps capture moving objects without the shape distortion that can occur with rolling shutter sensors.
This is important for vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems. Exposing every pixel simultaneously helps eliminate spatial distortion during high-speed motion.
Applications for the Sony IMX568 GMSL2 camera
The AcM 36DX568-I67 is suitable for vision applications where a monochrome global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
AcM 36DX568-I67 for vision projects
Choose the AcM 36DX568-I67 when your project needs a Sony IMX568 GMSL2 camera with global shutter, monochrome output and reliable image capture at 50 fps. Its GMSL2 interface and Sony Pregius S sensor make it a practical camera module for vision systems handling moving objects.
Need help selecting the right accessories or platform for the AcM 36DX568-I67? Contact us for advice about your vision project.
