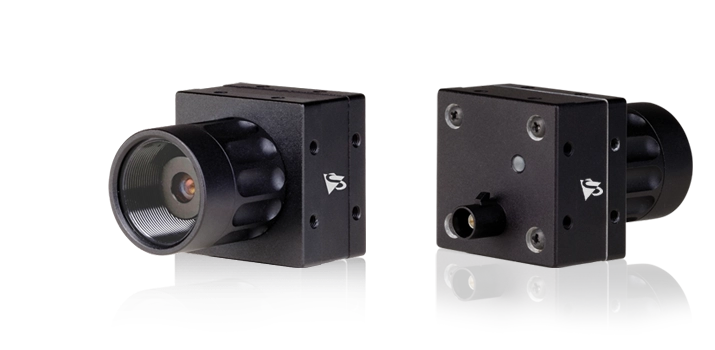

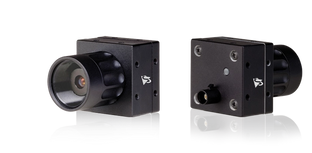

AcM 36DR2020-I67 GMSL2
AcM 36DR2020-I67
- AR2020
- GMSL2 Camera
The AR2020 GMSL2 camera AcM 36DR2020-I67 is a monochrome machine vision camera with a CMOS AR2020 rolling shutter sensor. With 5120×3840 resolution, 14 fps at full resolution, 19.7 MP and a 1/1.8 sensor format, this camera is suitable for systems that require high-resolution grayscale imaging.
The AcM 36DR2020-I67 uses a 1/1.8 format AR2020 CMOS sensor and connects through a GMSL2 interface. As part of the Acuva series, it can be integrated into industrial and OEM vision setups.
AR2020 sensor for high-resolution imaging
The AcM 36DR2020-I67 is built around the AR2020 image sensor. This CMOS rolling shutter sensor combines 19.7 MP with a 5120×3840 resolution, making it a good match for applications where detail and monochrome image data are prioritized over color.
Specifications
| Part number | AcM 36DR2020-I67 |
| Category | GMSL2 |
| Megapixel | 19.7 MP |
| Resolution | 5120x3840 |
| Frame rate | 14 |
| Sensor format | 1/1.8" |
| Sensor | AR2020 |
| Sensor Type | CMOS |
| Shutter Type | Rolling |
| Color/ Mono | Monochrome |
| Trigger | true |
| Mass | 80 g |
| Heigth | 36 mm |
| Length | 60.3 mm |
| Width | 36 mm |
Monochrome GMSL2 camera with AR2020 sensor
This monochrome GMSL2 camera outputs grayscale images. A monochrome camera is often selected when the application does not require color information but does need consistent contrast and straightforward image processing.
Unlike a color camera, a monochrome camera does not include a Bayer color filter.
Rolling shutter GMSL2 camera
The AcM 36DR2020-I67 uses a rolling shutter. Rolling shutter sensors read out the frame sequentially, line by line, and are commonly used for high-resolution capture where scene motion is limited or controlled.
Applications for the AR2020 GMSL2 camera
The AcM 36DR2020-I67 is suitable for machine vision and embedded vision applications where a high-resolution monochrome GMSL2 camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Object detection
- Barcode and code reading
- Measurement systems
AcM 36DR2020-I67 for high-resolution vision projects
Choose the AcM 36DR2020-I67 when your project needs a GMSL2 camera with the AR2020 sensor, rolling shutter operation and monochrome output at 5120×3840 and 14 fps. As part of the Acuva series, it offers a 1/1.8 sensor format for integration in machine vision systems.
Need help selecting the right lens, cable or platform for the AcM 36DR2020-I67? Contact us for advice about your vision project.
