AcC 36DX900-I67, IMX900, GMSL2 Camera AcC 36DX900-I67
AcC 36DX900-I67, IMX900, GMSL2 Camera AcC 36DX900-I67
€0,00
Documentation
Description

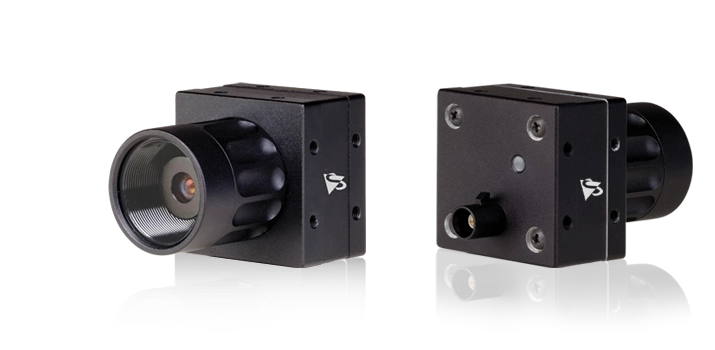

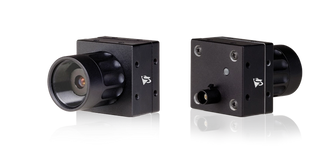

The Sony IMX900 GMSL2 camera AcC 36DX900-I67 is a color camera with a Sony Pregius S IMX900 global shutter sensor. With 2048×1536 resolution, up to 80 fps and 3.1 MP color output, this camera supports vision systems that need reliable image capture of moving objects.

The AcC 36DX900-I67 uses a 1/3.1 inch IMX900 CMOS Pregius S sensor and streams over GMSL2. This combination pairs global shutter imaging with 3.1 MP resolution for projects that require consistent color images.

IMX900 sensor for GMSL2 vision

The AcC 36DX900-I67 is built around the IMX900 image sensor. This Pregius S global shutter sensor provides a 2048×1536 resolution within a 1/3.1 inch optical format, offering synchronized exposure and color data at up to 80 fps.

Pregius S is a global shutter CMOS family aimed at precise, repeatable imaging, where capturing the entire frame at once helps maintain shape accuracy when subjects are in motion.

More info
Part number AcC 36DX900-I67

Color GMSL2 camera with IMX900 sensor

This color GMSL2 camera outputs color images. A color camera is often the right choice when the task requires RGB information in addition to shape and contrast.

Color sensors commonly use a Bayer color filter array to generate color values, which differs from monochrome processing that focuses solely on luminance.

For many vision workflows, color output supports inspection, detection and identification tasks that depend on hue or surface appearance.

Global shutter GMSL2 camera for moving objects

The AcC 36DX900-I67 is a global shutter GMSL2 camera. Global shutter sensors expose all pixels simultaneously, helping capture moving objects without the geometric distortion that can occur with rolling shutter readout.

This is useful for applications with moving parts, conveyor systems, robotics, rotating components or fast positioning stages where motion artifacts must be minimized.

Applications for the IMX900 GMSL2 camera

The AcC 36DX900-I67 is suitable for vision applications where a color global shutter camera is required. Typical use cases include:

  • Machine vision inspection
  • Robotics and automation
  • Motion analysis
  • Object detection
  • Barcode and code reading
  • Measurement systems

AcC 36DX900-I67 for GMSL2 vision projects

Choose the AcC 36DX900-I67 when your project needs a GMSL2 camera with a Pregius S IMX900 global shutter sensor, 2048×1536 resolution, up to 80 fps and 3.1 MP color output.

Need help selecting the right lens, cable or platform for the AcC 36DX900-I67? Contact us for advice about your vision project.
