AcC 36DX568-I67 GMSL2
AcC 36DX568-I67
- Sony IMX568
- GMSL2 Camera

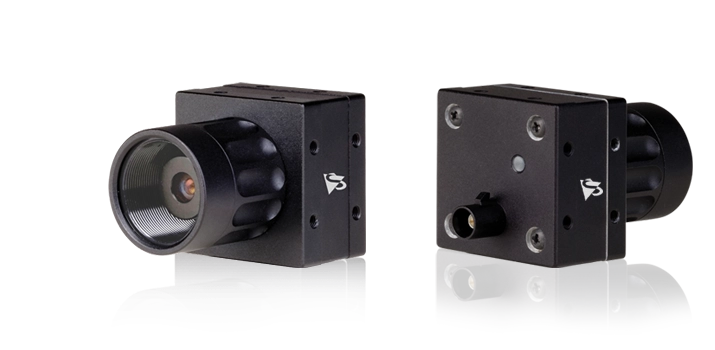

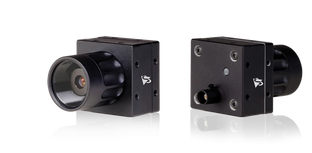

The Sony IMX568 GMSL2 camera AcC 36DX568-I67 is a color camera with a Sony Pregius S IMX568 global shutter sensor. With 2448×2048 resolution, up to 50 fps and 5 MP color output, this camera supports vision systems that need reliable image capture of moving objects.
The AcC 36DX568-I67 uses a 1/1.8 inch IMX568 CMOS Pregius S sensor and streams over GMSL2. This combination pairs global shutter imaging with 5 MP resolution for projects that require consistent color images.
IMX568 sensor for GMSL2 vision
The AcC 36DX568-I67 is built around the IMX568 image sensor. This Pregius S global shutter sensor provides a 2448×2048 resolution within a 1/1.8 inch optical format, offering synchronized exposure and color data at up to 50 fps.
Pregius S is a global shutter CMOS family aimed at precise, repeatable imaging, where capturing the entire frame at once helps maintain shape accuracy when subjects are in motion.
More info| Part number | AcC 36DX568-I67 |
Color GMSL2 camera with IMX568 sensor
This color GMSL2 camera outputs color images. A color camera is often the right choice when the task requires RGB information in addition to shape and contrast.
Color sensors commonly use a Bayer color filter array to generate color values, which differs from monochrome processing that focuses solely on luminance.
For many vision workflows, color output supports inspection, detection and identification tasks that depend on hue or surface appearance.
Global shutter GMSL2 camera for moving objects
The AcC 36DX568-I67 is a global shutter GMSL2 camera. Global shutter sensors expose all pixels simultaneously, helping capture moving objects without the geometric distortion that can occur with rolling shutter readout.
This is useful for applications with moving parts, conveyor systems, robotics, rotating components or fast positioning stages where motion artifacts must be minimized.
Applications for the IMX568 GMSL2 camera
The AcC 36DX568-I67 is suitable for vision applications where a color global shutter camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
AcC 36DX568-I67 for GMSL2 vision projects
Choose the AcC 36DX568-I67 when your project needs a GMSL2 camera with a Pregius S IMX568 global shutter sensor, 2448×2048 resolution, up to 50 fps and 5 MP color output.
Need help selecting the right lens, cable or platform for the AcC 36DX568-I67? Contact us for advice about your vision project.
