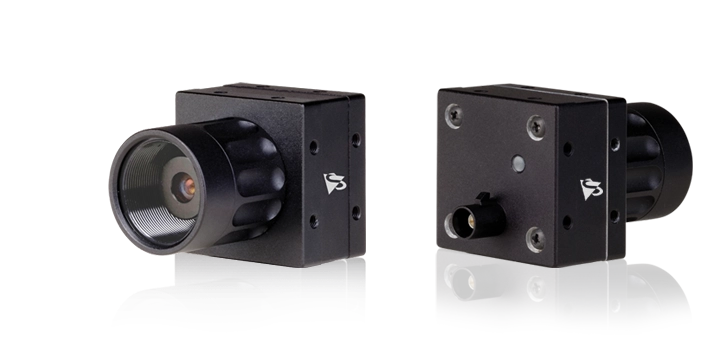

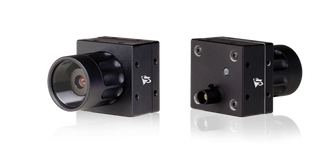

AcC 36DR2020-I67 GMSL2
AcC 36DR2020-I67
- AR2020
- GMSL2 Camera
The AR2020 GMSL2 camera AcC 36DR2020-I67 is a color vision camera with a rolling shutter CMOS sensor. With 5120×3840 resolution, 14 fps at full resolution, 19.7 MP output and a 1/1.8 inch sensor format, this camera addresses projects that require high-resolution color image capture.
The AcC 36DR2020-I67 uses a 1/1.8 inch AR2020 CMOS sensor and connects through a GMSL2 interface. Its color imaging and 19.7 MP frame size support systems that need detailed color scenes.
AR2020 sensor for high-resolution imaging
Built around the AR2020 image sensor, the AcC 36DR2020-I67 combines a rolling shutter CMOS architecture with 5120×3840 resolution. The 1/1.8 inch format and 19.7 megapixel frame provide detailed color images at up to 14 frames per second.
The AR2020 belongs to a class of CMOS sensors that target high-resolution capture. With its 19.7 MP resolution and color output, the sensor is suited to tasks that benefit from capturing fine detail and color variations within the scene.
More info| Part number | AcC 36DR2020-I67 |
Color GMSL2 camera with AR2020 sensor
This color GMSL2 camera captures RGB color information from the AR2020 sensor. A color camera is selected when the application requires color differentiation, visualization, labeling or documentation in addition to spatial detail.
Color output enables workflows that depend on hue and saturation differences, such as identifying colored features, reading colored indicators or recording scenes where color context matters alongside geometry.
Rolling shutter GMSL2 camera
The AcC 36DR2020-I67 features a rolling shutter. Rolling shutter sensors read out the image line by line, which is well suited to static scenes or moderate motion.
When imaging faster motion, users typically coordinate exposure time and lighting to manage motion-related artifacts associated with sequential readout.
This behavior differs from global shutter operation and should be considered when planning capture conditions, object speeds and illumination for the intended vision task.
Applications for the AR2020 GMSL2 camera
The AcC 36DR2020-I67 is appropriate for vision applications where high-resolution color images are needed. Typical use cases include:
- High-resolution inspection and documentation
- Object recognition and classification where color is relevant
- Measurement and dimensional checks on static or slow-moving parts
- Scene capture and recording for analysis
- General vision tasks requiring 19.7 MP color frames
AcC 36DR2020-I67 for high-resolution color imaging
Choose the AcC 36DR2020-I67 when your project needs a color AR2020 GMSL2 camera with a rolling shutter, 5120×3840 resolution, 19.7 MP frames and 14 fps. Its GMSL2 interface and AR2020 CMOS sensor provide a straightforward path to integrating high-resolution color imaging into vision systems.
Need help selecting the right lens, cable or platform for the AcC 36DR2020-I67? Contact us for advice about your vision project.
