DFM 36SR0234-ML MIPI CSI-2
DFM 36SR0234-ML
- AR0234
- MIPI CSI-2 Camera

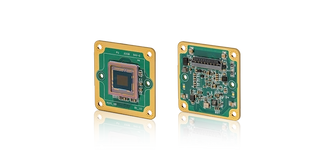

The AR0234 MIPI CSI-2 camera DFM 36SR0234-ML is a compact color embedded vision camera with a global shutter CMOS sensor. With 1920×1200 resolution and 120 fps at full resolution, this camera is designed for embedded vision systems that need reliable color image capture of moving objects.
The DFM 36SR0234-ML uses a 1/2.6 inch AR0234 CMOS sensor and connects through MIPI CSI-2. Its compact board-level design makes it suitable for embedded systems, robotics, inspection devices and OEM vision products.
AR0234 sensor for embedded vision
The DFM 36SR0234-ML is built around the AR0234 image sensor. This global shutter CMOS sensor pairs 1920×1200 resolution with high frame rates, making it a strong choice for applications where motion must be captured without rolling-shutter artifacts.
Global shutter technology exposes all pixels at the same time, helping to preserve object shape during high-speed motion. This supports precise measurements and analysis when imaging fast-moving parts or scenes.
More info| Part number | DFM 36SR0234-ML |
Color MIPI CSI-2 camera with AR0234 sensor
This color MIPI CSI-2 camera outputs color images. A color camera is often the best choice when the application requires color information for identification, classification or visualization while maintaining consistent timing from a global shutter sensor.
For embedded vision, this makes the DFM 36SR0234-ML useful for tasks where both motion handling and color data are important.
Global shutter MIPI CSI-2 camera for moving objects
The DFM 36SR0234-ML is a global shutter MIPI CSI-2 camera. Global shutter sensors expose every pixel simultaneously, which helps capture moving objects without the geometric distortion that can occur with rolling shutter sensors.
This is important for embedded vision applications with moving parts, conveyor belts, robotics, rotating objects or fast positioning systems where accurate shape and position need to be maintained frame to frame.
Applications for the AR0234 MIPI CSI-2 camera
The DFM 36SR0234-ML is suitable for embedded vision applications where a compact color board camera is required. Typical use cases include:
- Machine vision inspection
- Robotics and automation
- Motion analysis
- Object detection
- Barcode and code reading
- Measurement systems
DFM 36SR0234-ML for compact embedded vision projects
Choose the DFM 36SR0234-ML when your project needs a compact AR0234 MIPI CSI-2 camera with a global shutter, color output and reliable image capture at 120 fps. Its board-level design and MIPI CSI-2 interface make it a practical camera module for embedded vision systems with limited space.
Need help selecting the right lens, cable or embedded platform for the DFM 36SR0234-ML? Contact us for advice about your embedded vision project.
