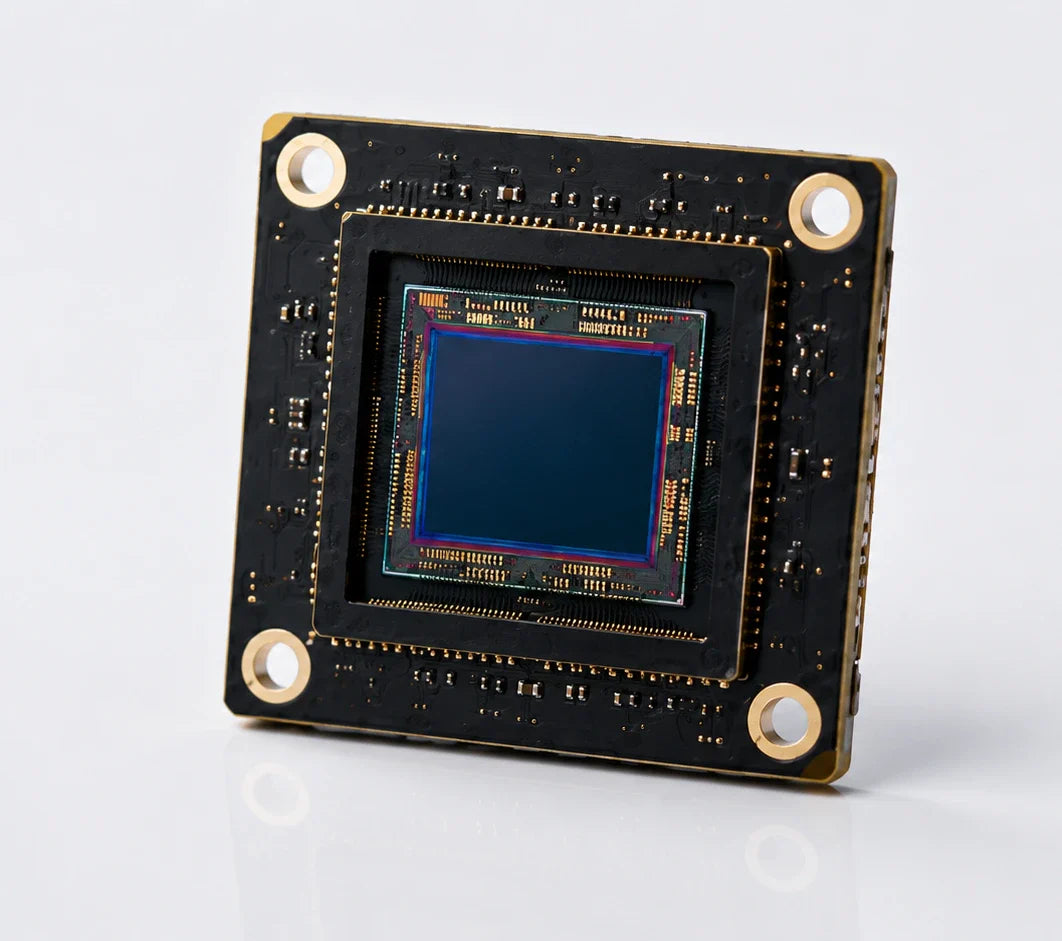

Sony Image Sensors for Embedded Cameras: IMX Guide
Sony image sensors for embedded cameras offer different combinations of shutter technology, resolution, pixel size and imaging speed for industrial and OEM vision systems.
Selecting the right Sony IMX sensor requires more than comparing megapixels. Object movement, lighting, field of view, processor support, cable distance and environmental conditions all affect the result.
This guide explains the main Sony image-sensor technologies and how to select between MIPI CSI-2, GMSL2 and FPD-Link III cameras.
Download the Sony IMXSensor Camera Guide
The Sony IMX Sensor Camera Guide provides the complete overview of The Imaging Source embedded cameras that use Sony image sensors.
Use the document to compare:
- Available Sony IMX sensor options
- Compatible embedded camera models
- MIPI CSI-2, GMSL2 and FPD-Link III interfaces
- Global and rolling shutter options
- Resolution, pixel size and frame rate
- Monochrome and color versions
- Board-level and IP67 camera designs
Get access to the complete Sony IMX camera and sensor overview. Compare the available options in one document without checking individual product pages.
Open the request form to access the guide.
Download the Sony IMX Sensor Camera GuideWhat Are Sony IMX Sensors
Sony IMX sensors are CMOS image sensors that convert incoming light into digital image data inside a camera.
The IMX designation identifies the image sensor rather than the complete camera. A finished embedded camera also includes camera electronics, interface hardware, connectors, firmware, drivers and mechanical components.
Cameras using the same sensor can therefore differ in:
- Camera interface
- Housing
- Trigger and I/O support
- Lens mount
- Software compatibility
- Environmental protection
The sensor should consequently be evaluated as part of the complete embedded vision system.
Which Sony Image-Sensor Technologies Matter for Embedded Cameras?
The Sony image-sensor technologies that matter for embedded cameras include shutter architecture, pixel design, sensitivity and readout performance.
Pregius and Pregius S
Pregius and Pregius S are Sony global-shutter technologies developed for industrial imaging.
They are relevant when objects move quickly and the image must preserve accurate shape and position. Pregius S uses a stacked, backside-illuminated design that supports smaller pixels and compact sensor formats while maintaining global-shutter capture.
STARVIS
STARVIS is a Sony CMOS technology designed for high sensitivity, particularly under limited-light conditions.
It is commonly associated with backside-illuminated pixel structures that improve light collection. Low-light performance must still be evaluated together with exposure time, lens aperture, gain and illumination.
Exmor and Backside Illumination
Exmor is Sony’s broader CMOS image-sensor technology for fast readout and reduced noise.
Backside illumination is a sensor architecture that positions the light-sensitive area closer to the incoming light. This can improve sensitivity and allow smaller pixels to collect light more efficiently.
Not every Sony IMX sensor uses the same architecture, so the specifications of the selected sensor must always be checked.
What Affects Sony IMX Image Quality Beyond Resolution?
Sony IMX image quality depends on pixel size, sensor size, sensitivity, dynamic range, noise, optics and lighting as well as resolution.
Resolution and Detectable Detail
Resolution determines how many pixels cover the field of view.
The required resolution should be calculated from the smallest feature or defect that must be detected. Selecting more pixels than the application needs can unnecessarily increase bandwidth, processing load and storage requirements.
Pixel Size and Sensitivity
Pixel size influences how much light can be collected by each pixel.
Smaller pixels can provide more detail within a compact sensor format. Larger pixels may offer advantages when exposure time or available illumination is limited. Pixel size should always be assessed together with sensor architecture, lens aperture and lighting.
Sensor Size and Lens Selection
Sensor size affects the field of view and the required lens image circle.
The lens must cover the complete sensor and provide enough optical resolution for the selected pixel size. A high-resolution sensor cannot produce the required detail when the lens is unable to resolve it.
Dynamic Range and Noise
Dynamic range describes how well the sensor captures bright and dark areas within the same scene.
Signal-to-noise ratio, read noise and saturation capacity also affect usable image quality. These factors become particularly important in reflective scenes, low-light conditions and applications requiring short exposure times.
How Do You Choose a Sony IMX Sensor for an Embedded Camera?
A Sony IMX sensor should be chosen by matching the imaging requirement to the complete embedded system.
- Define the smallest feature. Calculate the field of view, working distance and required pixels per feature.
- Evaluate movement. Select global shutter when rapid motion or measurement accuracy makes rolling-shutter distortion unacceptable.
- Set the frame-rate requirement. Consider object speed, production rate, exposure time, trigger frequency and processing time.
- Choose monochrome or color. Use color when hue is important. Use monochrome for shape, contrast, texture, measurement or wavelength-specific lighting.
- Review lighting and optics. Check illumination, reflections, lens aperture, sensor format, image-circle coverage and optical resolution.
- Confirm system compatibility. Verify processor, driver, carrier board, operating system and software support before designing the camera into the final product.
Which available Sony IMX camera matches these requirements? Download the complete guide to compare the supported sensors and embedded camera configurations.
Compare Sony IMX sensor options in one guide.
View the Sony IMX Sensor Camera GuideWhat Else Must be Checked Before Camera Integration?
Camera integration must also be checked against the processor platform, software environment, lens and mechanical design.
Confirm support for the exact camera model, sensor driver, operating system and carrier-board configuration. Embedded platforms may include NVIDIA Jetson, NXP i.MX and Raspberry Pi, but interface compatibility alone does not guarantee sensor support.
The software environment should support the required image acquisition, exposure control, gain control, triggering, pixel formats and multi-camera operation.
