NVIDIA® Jetson Orin™ Guide for Embedded Vision

NVIDIA Jetson Orin is used in embedded vision because it combines compact computing hardware with strong processing capabilities for embedded vision applications. This makes it suitable for systems where image acquisition and processing need to happen close to the camera.

For embedded vision projects, the processor platform is only one part of the system. The camera, lens, cable, carrier board, driver package and software pipeline also need to be validated. A validated reference design reduces integration risk by providing a proven combination of hardware and software that is ready for product development.

The NVIDIA Jetson Orin Reference Design from The Imaging Source is designed to support this evaluation process. It gives engineers a practical route from hardware setup to first image acquisition.

NVIDIA Jetson Orin Reference Design for Camera Integration

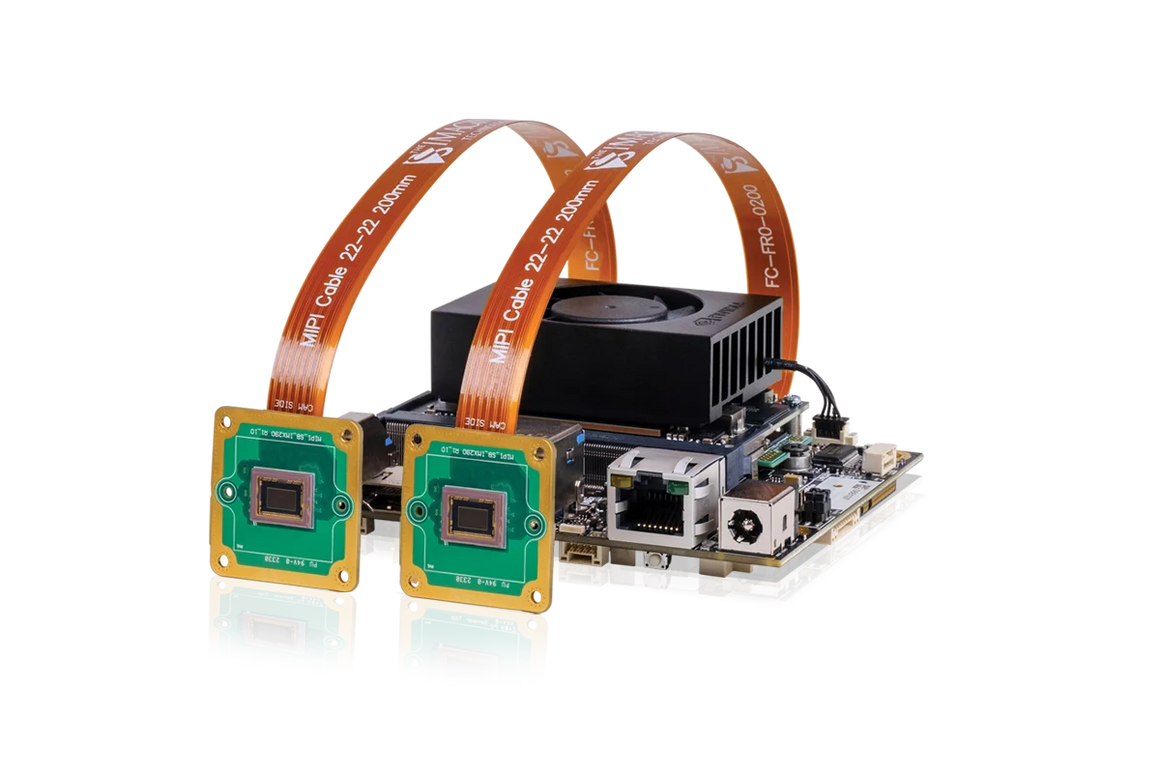

The NVIDIA Jetson Orin reference design provides a structured starting point for embedded camera integration. It brings together the processor platform, carrier board, camera hardware, cables, power supply and software environment needed to begin testing.

This makes the reference design useful for engineers who want to evaluate embedded camera performance before moving toward a custom or production-ready system design.

Depending on the project requirements, the platform can support different camera and carrier board configurations. This helps teams test image acquisition, software workflows and camera behavior in a controlled setup.

For many embedded vision projects, the first practical target is a stable camera stream. This confirms that the camera is connected correctly, the software environment is ready and the NVIDIA Jetson Orin platform can receive image data.

tcam-capture provides a graphical way to start image acquisition. It allows users to select a camera, display the stream and access camera settings. This is useful during the evaluation stage, especially before moving into GStreamer pipelines or application-level development.

For multi-camera setups, additional camera instances can be opened and tested. This helps developers check whether each connected camera is detected and streaming as expected.

GStreamer Camera Testing on NVIDIA Jetson Orin

GStreamer is one of the main frameworks used for embedded camera applications. On NVIDIA Jetson Orin, it can be used to validate image acquisition, test camera streams and build flexible image-processing pipelines.

A basic GStreamer setup helps developers check whether the camera stream can be acquired and displayed through a pipeline. From there, the pipeline can be adapted for processing, recording, display or AI-based workflows.

Working With IC Imaging Control 4 SDK for NVIDIA Platforms

IC Imaging Control 4 SDK for NVIDIA platforms supports software development when the camera needs to become part of a larger embedded vision workflow. It can help engineers move from basic image acquisition to application-level testing.

For NVIDIA Jetson Orin embedded vision projects, the SDK is relevant when developers need camera control, image acquisition and integration with processing software.

This step is especially useful when the final system needs more than a simple image preview. Developers can use the SDK as a starting point for building camera functions into their own application.

Driver Configuration for NVIDIA Jetson Orin Camera Platforms

Driver configuration is an important part of working with cameras on NVIDIA Jetson Orin. When a different camera model or carrier board configuration is used, the software environment must be configured correctly.

The guide explains how to select the correct camera model and apply the required driver configuration. This helps avoid common setup issues where the camera is connected correctly but not detected by the system.

Driver configuration should be part of the setup checklist whenever the camera model, carrier board or hardware setup changes.

An NVIDIA Jetson Orin reference design is useful when engineers need a structured starting point for embedded vision development. Instead of selecting every component separately, the reference design provides a tested combination of camera hardware, processor platform, software and documentation. This can be useful for:

• First image testing
• Camera evaluation
• Software development
• GStreamer pipeline testing
• Multi-camera testing
• Prototype development
• Early production planning
• OEM camera integration projects

For teams working under time pressure, a reference design can help reduce the number of unknowns during the first development phase.
