Traffic Monitoring Cameras for Smart City and Edge AI Vision
A traffic monitoring camera for smart city and edge AI systems must deliver reliable image data in outdoor environments with changing light, vibration, weather and long operating hourse. In intelligent transportation systems, cameras can support traffic flow analysis, intersection monitoring, asset trackingm safety applications and ANPR-adjacent visual tasks.
This article explains how to choose an embedded camera for traffic monitoring and why Acuva, 36S MIPI CSI-2, and 36C FPD-Link III cameras from The Imaging Source are relevant for smart city and traffic apllications.
Why traffic monitoring camera selection matters in smart city systems
Traffic monitoring camera selection matters because outdoor vision systems must perform reliably in demanding and changing conditions. A camera may need to capture usable image data during daylight, shadow, rain, vibration, night lighting or fast vehicle movement.
In smart city infrastructure, the camera is part of a larger embedded vision system. It must work together with the processor platform, cable setup, optics, software and enclosure design. The goal is not only to capture an image, but to support stable visual data for analysis and decision-making.
For OEMs, integrators and transport technology teams, important selection factors include outdoor readiness, image quality, edge processing support, cable length, rugged design, lens stability and long-term reliability.
Common applications for traffic monitoring cameras
Traffic monitoring cameras can support different intelligent transportation and smart city tasks. The exact requirements depend on installation location, view distance, speed, lighting and processing workflow.
| Application area | Image data used for | Key requirements |
|---|---|---|
|
Traffic flow monitoring |
Providing image data for vehicle movement and road usage analysis.Providing image data for vehicle movement and road usage analysis. |
Reliable image data across changing light. |
|
Intersection monitoring |
Provide image data for lane, crossing and vehicle behavior analysis. |
Wide field of view and stable performance. |
|
Tunnel and road safety |
Providing image data for safety monitoring and visual change detection. |
Outdoor readiness and dependable operation. |
|
Asset tracking |
Support OCR-adjacent or symbol recognition tasks. |
Sharp imaging and consistent data capture. |
|
Environmental monitoring |
Providing visual context around transport infrastructure. |
Long-term reliability in outdoor conditions. |
|
Edge AI traffic systems |
Providing image data for local processing, counting or classification. |
Low latency and platform compatibility. |
In each case, the camera provides the image data that the vision software, edge processor or monitoring system uses for analysis, detection, counting or decision-making. This distinction is important because the camera hardware should be selected to match the image-processing task without being treated as the complete traffic vision system.

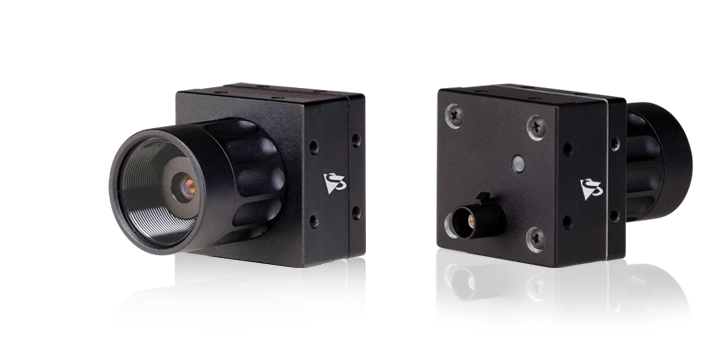

Recommend traffic monitoring camera : Acuva
Acuva is a strong recommended traffic monitoring camera option when the system needs rugged embedded imagig in outdoor or machine-mounted environments. Acuva IP67 GMSL2 cameras are especially relevant when the camera must be placed away from the processor platform and connected through robust cabling. Acuva is a good fit when:
- The camera is exposed to dust, moisture or outdoor conditions.
- The system needs cable distance between the camera and processor.
- The installation may include vibration or movement.
- The application requires rugged embedded camera hardware.
- The system uses an embedded processing platform with a suitable deserializer setup.
- Reliable image transfer is important for edge AI or smart city analysis.
For traffic monitoring, Acuva is especially useful when the camera position is exposed or physically separated from the central electronics.
36S MIPI CSI-2 traffic cameras for compact edge systems
36S MIPI CSI-2 traffic cameras are relevant when the camera is mounted close to the processing board. This makes the 36S Series a practical option for compact smart city devices, edge AI prototypes and embedded traffic systems with a short internal camera connection.
MIPI CSI-2 supports direct camera-to-processor integration, which can help reduce size and latency. This is useful when the complete vision system is installed inside one compact device or enclosure. The 36S Series can be considered when:
- The camera and processor are close together.
- The design requires a small hardware footprint.
- Low latency is important for local image processing.
- The system uses an embedded platform with MIPI CSI-2 support.
- The camera is part of a compact traffic or smart city edge device.
For outdoor use, the full enclosure and lens protection still need to be designed around the final installation environment.

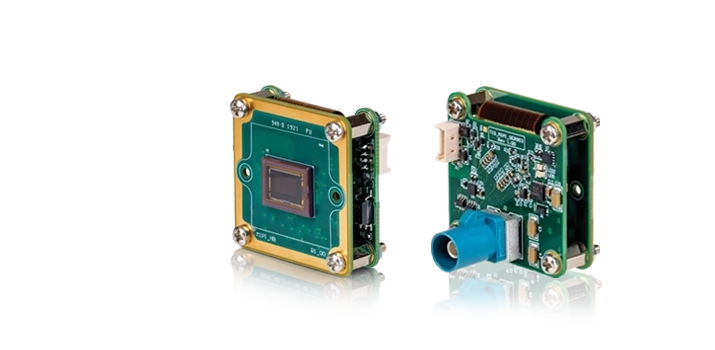

36C FPD-Link III traffic cameras for longer cable distance
36C FPD-Link III traffic cameras are relevant when the system needs the functionality of a MIPI CSI-2 camera with longer cable distance between the camera and processor. This can be useful for smart city and traffic systems where the camera must be positioned away from the embedded computing platform.
FPD-Link III can support cleaner system architecture in installations where camera placement, cable routing and enclosure design are important. The 36C Series is especially relevant when the system needs remote camera placement with a stable connection to the processing side.
Choose 36C FPD-Link III when:
- The camera must be separated from the processor.
- Cable length and routing are important design factors.
- The system needs embedded camera functionality over a longer link.
- The project uses a compatible deserializer setup.
- The installation requires a more flexible camera position.
Image quality requirements for traffic monitoring cameras
Image quality requirements for traffic monitoring cameras depend on the visual task. A system used for traffic flow monitoring may need a wide view and stable frame output, while a system used for vehicle or symbol recognition may require sharper detail.
Important image-quality factors include resolution, frame rate, dynamic range, sensitivity, shutter type and lens selection. Traffic environments often include sunlight, reflections, shadow, headlights, rain and motion. The camera should be selected to support usable data under these variable conditions.
High dynamic range can be especially important when scenes include bright and dark areas at the same time. Global shutter sensors are often useful when the scene includes movement or when the camera is mounted in a location exposed to vibration.
Outdoor readiness and reliability for traffic monitoring cameras
Outdoor readiness is essential for traffic monitoring cameras because smart city systems often operate continuously in exposed locations. The camera, cable, lens, housing and connector must support the expected installation environment.
Before selecting a camera, check environmental exposure, vibration, temperature range, cable strain relief, lens protection and maintenance access. A camera that performs well indoors may not be suitable for a roadside, rail, tunnel or outdoor infrastructure installation without the correct mechanical protection.
Reliability is also important for long-term projects. Traffic and smart city systems may require stable performance, documentation, long-term availability and predictable support from prototype to deployment.
Edge AI camera integration for smart city systems
An edge AI camera for smart city systems should match the selected processor platform and image-processing workflow. The camera must provide image data that can be used by the local system for detection, counting, classification or monitoring tasks.
The best interface depends on the system architecture. Acuva GMSL2 and 36C FPD-Link III are useful when the camera must be placed away from the processor. 36S MIPI CSI-2 is useful when the camera can be integrated close to the processing board.
For edge AI projects, review the camera, cable, deserializer, processor platform, software environment and enclosure as one complete system. This reduces integration risk and helps the project move from prototype to reliable deployment.
How to choose an embedded camera for traffic monitoring
Choosing an embedded camera for traffic monitoring starts with the installation and visual task. Define what the system must observe, where the camera will be mounted and how the image data will be processed. Use this checklist as a starting point:
- Define the application: traffic flow, safety, asset tracking, monitoring or edge AI analysis.
- Check the environment: light changes, weather, vibration, temperature and maintenance access.
- Choose the interface: Acuva GMSL2, 36S MIPI CSI-2 or 36C FPD-Link III.
- Select image requirements: resolution, frame rate, dynamic range, sensitivity and shutter type.
- Review mechanics: housing, lens, mounting, cable routing and connector protection.
- Confirm system integration: processor platform, deserializer board and software support.
- Plan for deployment: documentation, long-term availability and repeatable performance.
Need help selecting a traffic monitoring camera?
Selecting a traffic monitoring camera requires more than choosing a sensor. The right camera depends on the outdoor environment, interface, cable length, image quality, processor platform, edge AI requirements and long-term support.
For rugged smart city and traffic systems, Acuva, 36S MIPI CSI-2 and 36C FPD-Link III cameras from The Imaging Source provide practical directions for different embedded vision architectures. Our team can help you compare the options and choose a suitable setup for your application.
