Robot Vision Cameras for Embedded Robotics
A robot vision camera must deliver reliable image data for autonomous robots, robot guidance and low-latency imaging. In robotics, the camera helps the system detect objects, understand movement, support positioning and send usable visual data to the embedded processing platform.
This article explains how to choose an embedded camera for robotics and how Acuva GMSL2, 36S MIPI CSI-2 and 36C FPD-Link III cameras from The Imaging Source can support different robot vision architectures.
Why robot vision camera selection matters
Robot vision camera selection matters because robots often operate in dynamic environments. The camera may need to capture moving objects, changing scenes, variable lighting and fast actions while sending stable image data to the processor.
A robot vision camera is part of the complete embedded vision system. The sensor, interface, lens, cable, mounting position and processor platform all influence how reliably the robot can use image data.
For OEMs, developers and system integrators, important selection factors include latency, frame rate, shutter type, cable length, mechanical stability, software support and long-term availability.
Common applications for robot vision cameras
Robot vision cameras can be used in many types of robotic systems. The best camera setup depends on the robot type, motion, environment and image-processing task.
| Application area | Image data used for | Key requirement |
|---|---|---|
| Autonomous robots | Providing scene image data for navigation and decision-making workflows. | Reliable image data during movement. |
| Mobile robots | Providing image data for obstacle-detection and positioning software. | Stable output and suitable field of view. |
| Robot arms | Providing image data for object location, alignment and guidance workflows. | Accurate imaging and repeatable calibration. |
| Picking robots | Providing image data for object identification and picking guidance. | Consistent image quality and low latency. |
| Inspection robots | Providing visual data for checking parts, surfaces or areas. | Image detail and repeatable output. |
| Service robots | Providing image data for visual awareness and interaction tasks. | Compact design and stable performance. |
The camera should be selected according to the robot task, camera position, movement, processing platform and expected operating conditions.
Robot vision camera options: Acuva, 36S or 36C
The right robot vision camera depends on where the camera is placed, how far it is from the processor and how rugged the robot design must be.
| Camera option | Best fit | Why it fits |
|---|---|---|
| Acuva IP67 GMSL2 | Mobile robots, outdoor robots and rugged robotic systems. | IP67 GMSL2 design for robust placement, reliable image transfer and longer embedded camera links. |
| 36S MIPI CSI-2 | Compact robot modules with the camera close to the processor. | Direct camera-to-processor connection with low latency and a small hardware footprint. |
| 36C FPD-Link III | Robots that need flexible camera placement. | Longer embedded camera links between the sensor and the processing platform. |
For compact robot modules, 36S MIPI CSI-2 is often a practical starting point. For remote camera placement or rugged designs, Acuva IP67 GMSL2 or 36C FPD-Link III can support a more flexible robot vision architecture.

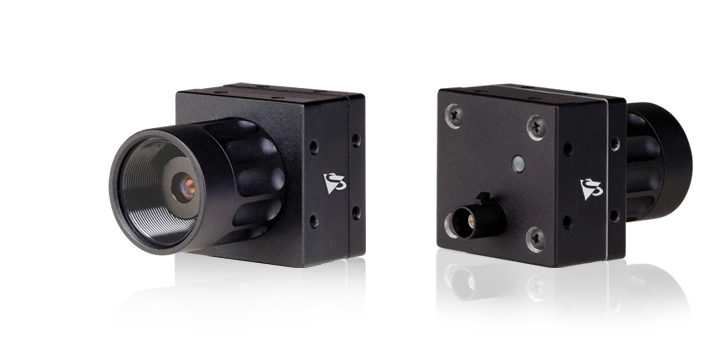

Acuva GMSL2 robot vision cameras for rugged systems
Acuva GMSL2 robot vision cameras are relevant when the camera must operate in a demanding environment or be mounted away from the processor. This can include mobile robots, outdoor robots, autonomous platforms and robotic systems with exposed camera positions.
Acuva GMSL2 cameras are useful when the system needs robust cabling and reliable image transfer between the camera and embedded processing platform. This can help when the processor is protected inside the robot body while the camera is mounted near the front, side, tool area or viewing position.
Acuva can be considered when the robot may experience vibration, movement, dust, moisture or longer cable routing between the camera and processing board.

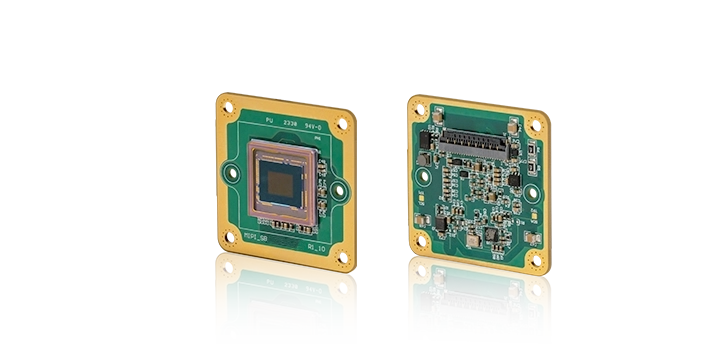

36S MIPI CSI-2 robot vision cameras for compact modules
36S MIPI CSI-2 robot vision cameras are relevant when the camera is integrated close to the processor. This makes them suitable for compact robot modules, embedded edge devices, lightweight robot subsystems and prototype platforms.
MIPI CSI-2 cameras supports direct camera-to-processor communication. This can help reduce system size and latency when the camera and processor are placed inside the same enclosure.
The 36S Series can be considered when the robot design requires a small hardware footprint, short internal camera connection and direct integration with a compatible embedded platform.

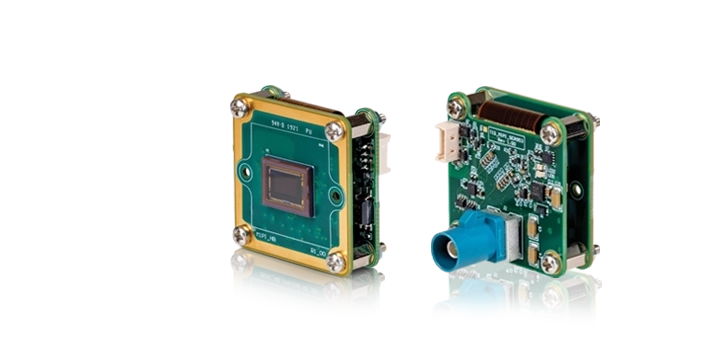

36C FPD-Link III robot vision cameras for flexible placement
36C FPD-Link III robot vision cameras are relevant when the camera must be separated from the processing platform. This can be useful in robots where the camera needs to be placed near a gripper, tool, mobile viewing area or protected external position.
FPD-Link III cameras supports longer embedded camera links while keeping camera functionality available at the processing side. This can give designers more freedom in robot layout, cable routing and camera placement.
Choose 36C FPD-Link III when camera position, cable length and embedded system architecture are important design factors.
Image quality requirements for robot vision cameras
Image quality requirements for robot vision cameras depend on the task and movement. A robot used for object detection may need stable detail and contrast, while a mobile robot may need consistent scene capture for navigation and obstacle detection.
Important factors include resolution, frame rate, shutter type, sensitivity, dynamic range, lens selection and field of view. Global shutter sensors are often useful when the robot, object or camera is moving.
The camera, lens and lighting should be reviewed together. Even a strong sensor can underperform if the field of view, working distance or illumination does not match the robot’s task.
Low-latency imaging for robot guidance
Low-latency imaging is important when the robot needs to react quickly to visual information. This can apply to navigation, object detection, picking, positioning, alignment or obstacle avoidance.
The camera interface, processor platform and software pipeline all influence latency. For compact designs, a direct camera-to-processor connection can help reduce system complexity. For robots with remote camera positions, GMSL2 or FPD-Link III can support more flexible placement while maintaining a reliable embedded camera link.
Latency should be reviewed together with frame rate, exposure time, image resolution and processing requirements.
Mechanical integration for robot vision cameras
Mechanical integration is important because camera placement is often limited by the robot design. The camera may need to fit into a compact housing, near a tool, on a mobile base or inside a protected enclosure.
Before selecting a robot vision camera, check available space, mounting position, cable routing, connector orientation, vibration, thermal behavior and lens protection. For mobile robots, cable strain relief and focus stability are especially important.
For short internal connections, 36S MIPI CSI-2 may be suitable. For longer links or rugged camera placement, Acuva GMSL2 or 36C FPD-Link III may be better options.
How to choose an embedded camera for robotics
Choosing an embedded vision camera for robotics starts with the robot task and camera position. Define what the robot must detect, inspect, read, locate or navigate around, then translate this into camera and system requirements.
Use this checklist as a starting point:
- Define the task: navigation, inspection, object detection, code reading, picking or positioning.
- Check the environment: lighting, movement, vibration, dust, moisture and available space.
- Choose the interface: Acuva GMSL2, 36S MIPI CSI-2 or 36C FPD-Link III.
- Select image requirements: resolution, frame rate, shutter type, sensitivity and field of view.
- Review mechanics: housing, lens, mounting, cable routing and connector protection.
- Confirm system integration: processor platform, deserializer if needed, software support and documentation.
- Plan for production: long-term availability, repeatable performance and supplier support.
Need help selecting a robot vision camera?
Selecting a robot vision camera requires more than choosing a sensor. The right camera depends on the robot type, movement, image-processing task, interface, cable length, lens, processor platform and long-term support.
For embedded robotics, Acuva GMSL2, 36S MIPI CSI-2 and 36C FPD-Link III cameras from The Imaging Source provide practical options for different robot architectures. Our team can help you compare camera options and identify a suitable setup for your application.
