Medical Camera Modules for Embedded Vision Devices
A medical camera module for embedded vision should support reliable image capture, compact system design and long-term integration in medical and life science devices. In diagnostics, lab automation, surgical assistance and patient monitoring, the camera becomes part of a larger device that must deliver consistent visual data over time.
This article explains how to choose an embedded camera for medical devices and why MIPI CSI-2 camera modules, such as the 36S Series from The Imaging Source, are relevant for compact embedded medical imaging systems.
Why medical camera module selection matters in medical devices
Medical camera module selection matters because image quality, reliability and integration stability can influence the performance of the complete device. A camera used in a medical or life science system must fit the optical, electronic, mechanical and software requirements of the application.
Medical vision applications often require clear imaging, stable output and compact hardware. Depending on the system, the camera may provide image data for sample analysis, device guidance, monitoring, documentation or visual support during a workflow.
Medical vision applications often require clear imaging, stable output and compact hardware. Depending on the system, the camera may provide image data for sample analysis, device guidance, monitoring, documentation or visual support during a workflow.
Common applications for embedded medical camera modules
Embedded medical camera modules are used in different medical, laboratory and life science systems. The exact requirements depend on the workflow, lighting conditions and image-processing task.
| Application area | Image data used for | Key requirements |
|---|---|---|
|
Diagnostics |
Providing image data for analysis or documentation. |
Image detail, contrast and consistency. |
|
Lab automation |
Providing image data for sample handling, tracking or inspection workflows. |
Repeatable imaging and stable integration. |
|
Surgical assistance |
Providing visual image data in compact medical equipment. |
Low latency and reliable output. |
|
Patient monitoring devices |
Providing visual information as part of a monitoring workflow. |
Stable image quality and long-term support. |
|
Life science instruments |
Providing image data for research, analysis or automated measurement. |
Sensor quality, sensitivity and documentation. |
In each case, the camera provides the image data that the device software, processing platform or vision system uses for analysis, monitoring, documentation or decision-making. This distinction is important because the camera module should be selected to match the image-processing task without being treated as the complete medical vision system.
Why MIPI CSI-2 medical camera modules fit compact device design
MIPI CSI-2 medical camera modules fit compact device design because they support direct camera-to-processor communication in a small hardware footprint. This is useful when the camera needs to be integrated close to the processing board.
In embedded medical systems, space is often limited. A compact MIPI CSI-2 camera module can help reduce system size while supporting efficient image transfer. This is especially relevant for handheld devices, compact diagnostic units, laboratory instruments and embedded medical imaging platforms.
MIPI CSI-2 is also useful when low latency is important for the imaging workflow. By connecting the camera directly to the processor platform, the system can be designed around compact electronics, short internal cabling and efficient embedded integration.
Recommended camera module for medical devices: 36S Series MIPI CSI-2

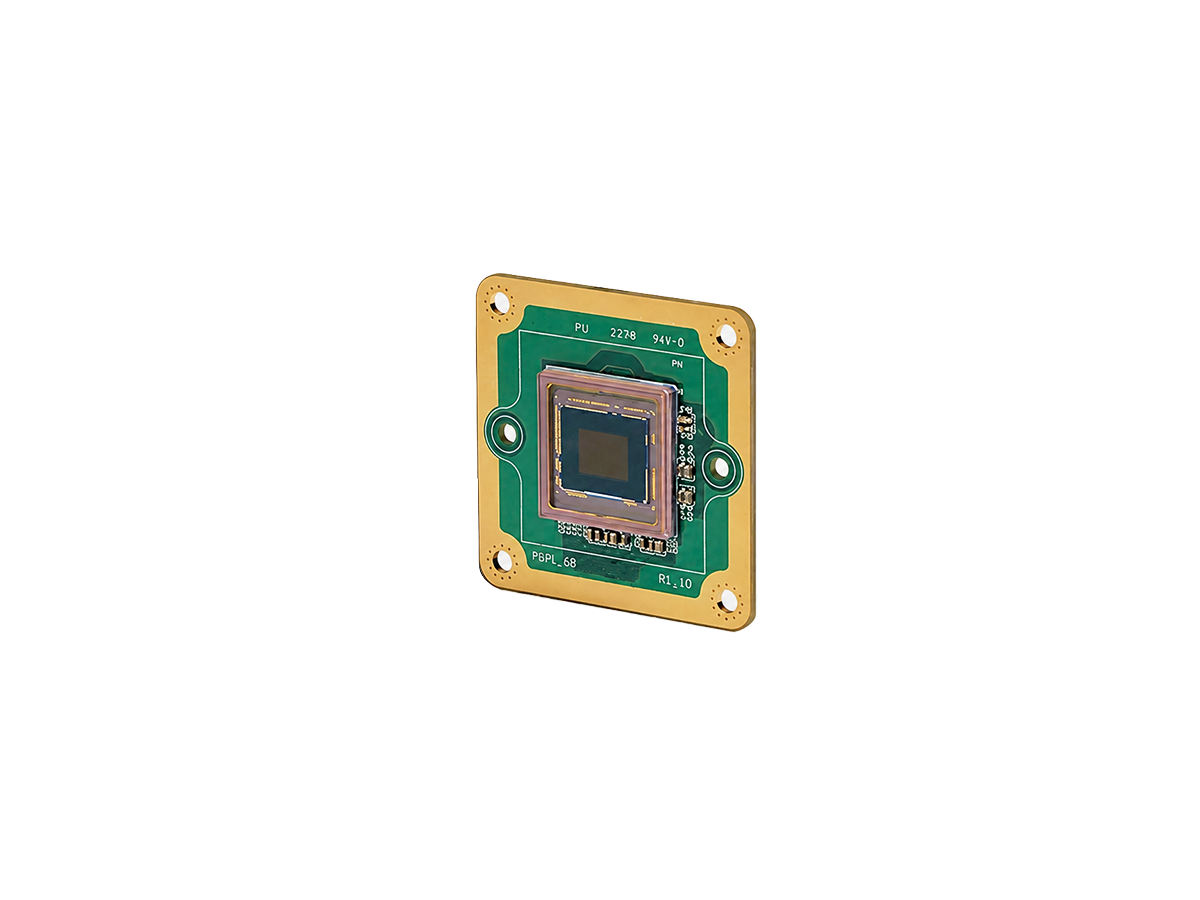

The 36S Series MIPI CSI-2 is the recommended camera module for medical devices where compact design and direct processor integration are important. These 22-pin single-board modules are especially relevant when the system uses an embedded Linux platform or a custom processor board with MIPI CSI-2 support. The 36S Series can be considered when:
- The camera must fit inside a compact medical or laboratory device.
- The design requires a direct camera-to-processor connection.
- Low latency is important for the imaging workflow.
- The device needs a board-level camera module.
- Long-term integration and documentation are important.
- The system design benefits from a small hardware footprint.
For medical and life science devices, the camera should always be evaluated together with the selected processor platform, optics, lighting and software environment.
Image quality requirements for medical camera modules
Image quality is one of the most important requirements for medical camera modules. The camera must provide the level of detail, contrast and stability needed for the application.
Key image-quality factors include resolution, sensor sensitivity, low-noise imaging, dynamic range, color or monochrome output and shutter type. A diagnostic device may prioritize detail and contrast, while a lab automation system may prioritize repeatability and stable output.
The right sensor choice depends on the task. Moving samples, handheld use or real-time guidance may require different imaging behavior than static sample analysis or visual documentation. Lighting, optics and exposure control should be reviewed together with the camera module.
Mechanical integration requirements for medical camera modules
Mechanical integration requirements for medical camera modules should be reviewed early in the design process. The camera board, connector, cable, lens holder and mounting position must fit the device layout.
Before selecting a camera module, check available space, connector orientation, cable routing, lens requirements and mounting concept. A camera that works technically may still create design challenges if it does not fit the enclosure or optical path.
For compact medical devices, it is also important to consider thermal behavior, assembly access, repeatable alignment and serviceability. These details help reduce integration risk when moving from prototype to production.
Documentation and long-term availability for medical camera modules
Documentation and long-term availability are important for medical camera modules because many medical and life science projects have longer development cycles. A camera module should be selected with future support in mind.
For OEMs and integrators, this means checking product availability, sensor lifecycle, technical documentation, platform support and supplier communication early in the project. These factors help reduce redesign risk and support a more stable transition from prototype to production.
The camera selection process should also remain compliance-aware. Avoid relying only on a prototype setup. Confirm that the camera, optics, software and mechanical design can support the intended device workflow and documentation needs.
How to choose an embedded camera for medical devices
Choosing an embedded vision camera for medical devices starts with the imaging task. Define what the device must capture, how the image data will be processed and where the camera will be placed inside the system. Use this checklist as a starting point:
- Define the application: diagnostics, lab automation, surgical assistance, monitoring or life science analysis.
- Choose the processor platform and check MIPI CSI-2 compatibility.
- Select the required sensor characteristics, including resolution, sensitivity and shutter type.
- Review lens mount, field of view, working distance and lighting.
- Check mechanical fit, cable routing and mounting options.
- Confirm software support, documentation and long-term availability.
- Evaluate whether the camera can support the project from prototype to production.
Need help selecting a medical camera module?
Selecting a medical camera module requires more than choosing a sensor. The right camera depends on image quality, interface, processor platform, optics, mechanical design, documentation and long-term support.
For compact embedded medical devices, the 36S Series MIPI CSI-2 camera modules from The Imaging Source provide a practical starting point for direct camera-to-processor integration. Our team can help you compare camera options and identify a suitable direction for your application.
