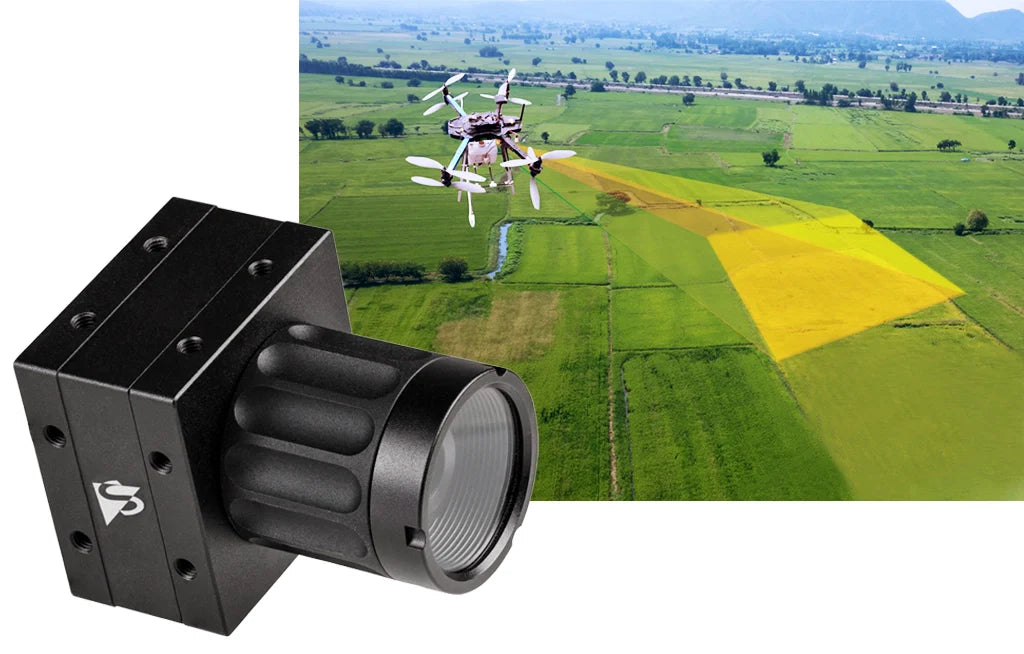

GMSL2 Agricultural Cameras for Embedded Vision and Outdoor Automation
An agricultural camera for embedded vision must deliver reliable image data in environments where lighting, movement, dust, moisture, and vibration can affect system performance. In agriculture and outdoor automation, cameras are used for crop monitoring, robotic harvesting, field inspection, livestock monitoring, sorting and precision farming.
This article explains how to choose a GMSL2 camera for agriculture and why Acuva IP67 GMSL2 camera from The Imaging Source are a strong direction for rugged embedded vision systems.
Why agricultural camera selection matters in outdoor automation
Agricultural camera selection matters because outdoor vision systems must work in conditions that are less controlled than factory environments. Cameras may be exposed to changing light, vibration, cable movement, dust, moisture and temperature changes.
A camera used in agriculture should therefore be selected as part of the full machine design. The interface, housing, lens, cable, sensor and processor platform all influence whether the system can deliver stable image data in the field.
For OEMs and system integrators, the goal is not only to capture image data. The camera must support repeatable imaging, reliable integration and long-term use in equipment such as agricultural robots, crop inspection systems, sorting machines and outdoor monitoring platforms.
Common applications for agricultural cameras
Agricultural cameras can support different types of smart farming and outdoor automation systems. The imaging requirements depend on the crop, machine, environment and analysis task.
| Application area | Image data used for | Key requirements |
|---|---|---|
|
Crop monitoring |
Providing image data for plant growth, color and condition analysis. |
Reliable image data under changing light. |
|
Agricultural robotics |
Providing image data for navigation, detection or task guidance software. |
Low latency and rugged integration. |
|
Robotic harvesting |
Providing image data for fruit, crop or plant position analysis. |
Stable image capture for object detection. |
|
Sorting and quality control |
Providing image data for produce, seed or grain inspection. |
Repeatable imaging for size, shape and color. |
|
Field inspection |
Providing outdoor image data for field, crop or equipment monitoring. |
Image consistency in changing conditions. |
|
Livestock monitoring |
Providing image data for movement, behavior or condition monitoring. |
Stable imaging in dynamic farm environments. |
In each case, the camera provides the image data that the vision software uses for analysis, detection, monitoring or decision-making. This distinction is important when selecting the right camera, because the camera hardware must match the image-processing task without being treated as the full vision system.
Recommended agricultural camera platform: Acuva IP67 GMSL2
Acuva IP67 GMSL2 is the recommended agricultural camera platform for rugged embedded vision applications. The series is designed for embedded and industrial systems where the camera must operate in demanding environments and connect reliably to the processing platform.
Acuva cameras are especially relevant for agriculture because they combine rugged housing, GMSL2 transmission and compact embedded integration. This makes them suitable for outdoor automation, robotic platforms, crop monitoring systems and machine-mounted camera designs.
Acuva IP67 GMSL2 cameras can be considered when the camera is exposed to dust, moisture or outdoor conditions, the system needs cable length between camera and processor, or the installation includes vibration, movement or machine operation.
Image quality requirements for agricultural cameras
Image quality requirements for agricultural cameras depend on the application and environment. A camera used for crop monitoring may need accurate color information, while a camera used for robotic movement may prioritize frame rate, shutter behavior and image stability.
Important image-quality factors include resolution, frame rate, sensitivity, dynamic range, shutter type and color or monochrome output. Outdoor applications can include strong sunlight, shadows, reflections, dust and changing weather conditions, so stable image capture is important.
Global shutter sensors are often useful when the camera or object is moving. Higher resolution can help with crop inspection, plant identification or produce sorting, but it may also increase processing load.
Ruggedization, vibration and weather requirements for agricultural cameras
Ruggedization is one of the most important requirements for agricultural cameras. Outdoor and machine-mounted systems may face vibration, shock, dust, moisture and cable movement during operation.
Before selecting a camera, check the housing, connector, cable type, mounting position and lens protection. A compact embedded camera may work well in a lab, but an agricultural system often needs a more protected camera concept.
For outdoor automation, also consider lens stability, focus retention, cable strain relief and how the camera will be cleaned or serviced. These mechanical details can strongly influence long-term performance in the field.
Cable length and embedded system integration for agricultural cameras
Cable length is important for agricultural cameras because the camera is often not mounted directly next to the processor. The camera may need to be positioned at the front of a machine, near a harvesting tool, on a robotic arm or outside the protected electronics area.
A GMSL2 camera can support this type of architecture by using robust cabling between the camera and embedded processing system. For projects using NVIDIA Jetson or other embedded platforms, the complete system should include a compatible deserializer board, cable and software environment.
This system-level approach reduces integration risk because the camera, cable, deserializer and processor platform are reviewed together instead of as separate components.
How to choose a GMSL2 agricultural camera
Choosing a GMSL2 agricultural camera starts with the application and installation environment. Define what the system must detect, inspect or monitor, then translate this into camera and platform requirements.
Use this checklist as a starting point:
- Define the application: crop monitoring, robotics, sorting, harvesting or outdoor inspection.
- Check the environment: dust, moisture, vibration, sunlight, temperature and cleaning requirements.
- Choose the camera interface: GMSL2 for longer-distance embedded camera links.
- Select image requirements: resolution, frame rate, shutter type, sensitivity and color output.
- Review mechanics: housing, lens, mounting, cable routing and connector protection.
- Confirm system integration: deserializer board, processor platform and software support.
- Plan for production: long-term availability, documentation and repeatable performance.
Need help selecting an agricultural camera?
Selecting an agricultural camera requires more than choosing a sensor. The right camera depends on the outdoor environment, interface, cable length, image quality, mechanical design, processor platform and long-term support.
For rugged embedded vision in agriculture and outdoor automation, Acuva IP67 GMSL2 cameras from The Imaging Source provide a practical direction for machine-mounted and remote-camera designs. Our team can help you compare camera options and select a suitable setup for your application.
